Brand: DESTACO

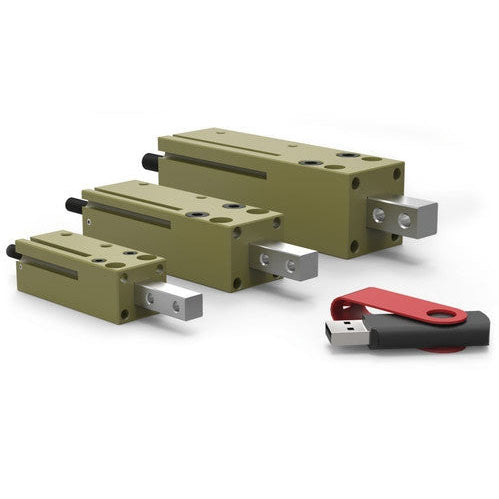

DESTACO RN-13M FEED ESCAPEMENT
SKU: DE-STA-CO-RN-13M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO RN-13M FEED ESCAPEMENT, the perfect solution for in-line part ejection, conveyor part accumulaor, or part separation. Use it alone or in tandem with other RN units to maximize its effectiveness. With a finger locking mechanism and square shaft, this unit ensures proper part feeding and prevents rotation. Mount it on top, bottom, or face surfaces and experience its impressive Metric Version Stroke of 31.8mm, Thrust Force of 400N (90lbsf), and Pressure Range of 40-100 psi. Order now and streamline your production process with ease and efficiency!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RN-13M FEED ESCAPEMENT
The RN series of feed escapements with a single finger can be used for in-line part ejection or staging, conveyor part accumulaor or part separator. Use singly or in tandem with other RN units.
- Finger locking mechanism ensures that only one finger can be retracted at one time for proper part feeding
- Square shaft prevents shaft from rotating
- Unit can be mounted using top, bottom, or face surface
| Product | Metric Version |
| Stroke (mm) | 31.8 |
| Stroke (in) | 1.252 |
| Thrust Force (N) | 400 |
| Thrust Force (lbsf) | 90 |
| Pressure Range (bar) | 40-100 psi |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 1 |
| Max Air Pressure (PSI) | 100 |
| Max Air Pressure (bar) | 7 |
| Product Type | Single Finger |
| Weight (kg) | 0.83 |
| Weight (lb) | 1.84 |
| Product Series Description | Feed Escapement Single Acting |
| Product Function | Linear Positioning |
| Product Family | Thrusters / Slides |
| Product Group | feed escapements |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
