Brand: DESTACO
DESTACO RN-12M FEED ESCAPEMENT
SKU: DE-STA-CO-RN-12M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO RN-12M FEED ESCAPEMENT, the perfect solution for in-line part ejection and staging, accumulating conveyor parts, or separating parts. Use it alone or in combination with other RN units to maximize its potential. Its unique finger locking mechanism ensures precise and efficient part feeding by allowing only one finger to retract at a time. Plus, the square shaft prevents rotation and allows for easy mounting on any surface. Available in both metric and imperial versions with a 25.4 mm (1 inch) stroke and a powerful thrust force of 222 N (50 lbsf), this feed escapement is a must-have for any production line. Don't miss out on this versatile and reliable product! Pressure range: 40-100 psi.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description

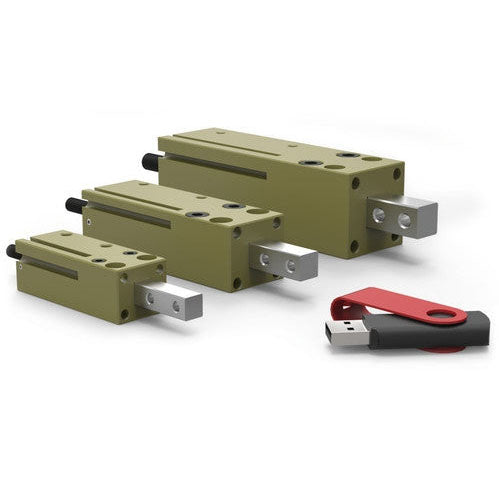

DESTACO RN-12M FEED ESCAPEMENT
The RN series of feed escapements with a single finger can be used for in-line part ejection or staging, conveyor part accumulaor or part separator. Use singly or in tandem with other RN units.
- Finger locking mechanism ensures that only one finger can be retracted at one time for proper part feeding
- Square shaft prevents shaft from rotating
- Unit can be mounted using top, bottom, or face surface
| Product | Metric Version |
| Stroke (mm) | 25.4 |
| Stroke (in) | 1.000 |
| Thrust Force (N) | 222 |
| Thrust Force (lbsf) | 50 |
| Pressure Range (bar) | 40-100 psi |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 1 |
| Max Air Pressure (PSI) | 100 |
| Max Air Pressure (bar) | 7 |
| Product Type | Single Finger |
| Weight (kg) | 0.39 |
| Weight (lb) | 0.85 |
| Product Series Description | Feed Escapement Single Acting |
| Product Function | Linear Positioning |
| Product Family | Thrusters / Slides |
| Product Group | feed escapements |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
