Brand: DESTACO

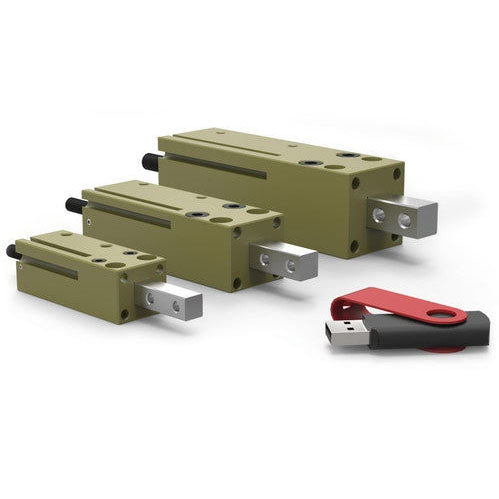

DESTACO RN-11M FEED ESCAPEMENT
SKU: DE-STA-CO-RN-11M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO RN-11M FEED ESCAPEMENT is a versatile tool for in-line part ejection or staging, conveyor part accumulation, and part separation. Designed for both individual and tandem use, the single finger feed escapement features a secure locking mechanism and a square shaft to prevent rotation. It can be easily mounted on top, bottom, or face surfaces and is available in both metric and imperial units with a stroke of 15.9 mm (0.626 in), a thrust force of 111 N (25 lbsf), and a pressure range of 40-100 psi. Get ready to optimize your production process with the RN series from DESTACO!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RN-11M FEED ESCAPEMENT
The RN series of feed escapements with a single finger can be used for in-line part ejection or staging, conveyor part accumulaor or part separator. Use singly or in tandem with other RN units.
- Finger locking mechanism ensures that only one finger can be retracted at one time for proper part feeding
- Square shaft prevents shaft from rotating
- Unit can be mounted using top, bottom, or face surface
| Product | Metric Version |
| Stroke (mm) | 15.9 |
| Stroke (in) | 0.626 |
| Thrust Force (N) | 111 |
| Thrust Force (lbsf) | 25 |
| Pressure Range (bar) | 40-100 psi |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Max Air Pressure (PSI) | 100 |
| Max Air Pressure (bar) | 7 |
| Product Type | Single Finger |
| Weight (kg) | 0.15 |
| Weight (lb) | 0.33 |
| Product Series Description | Feed Escapement Single Acting |
| Product Function | Linear Positioning |
| Product Family | Thrusters / Slides |
| Product Group | feed escapements |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
