Brand: DESTACO

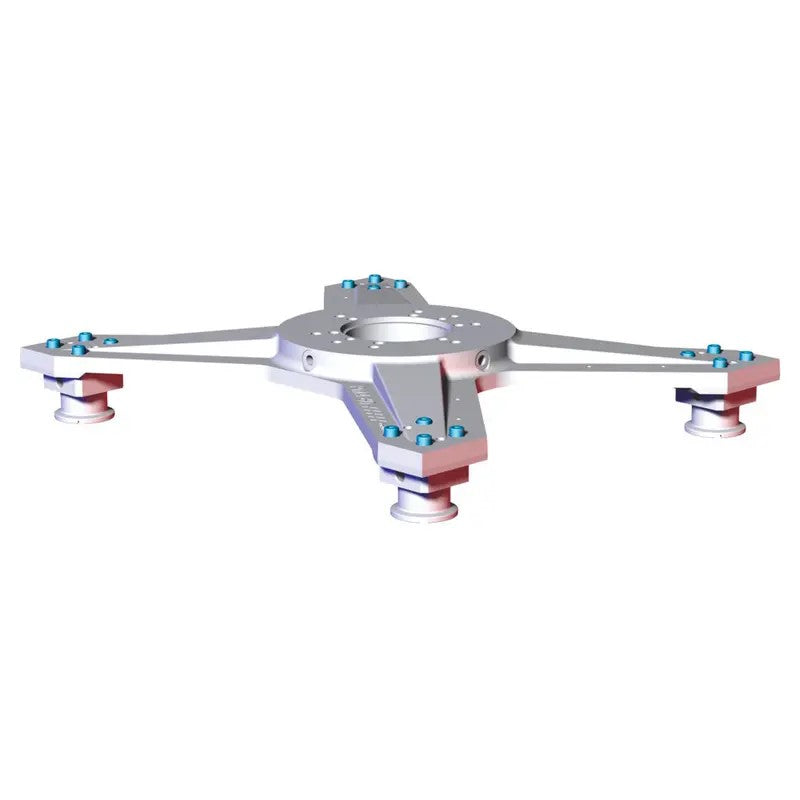

DESTACO RM4-STS-R04 MID MOUNT ASSEMBLY - SPIDERGRIP - R04
SKU: DE-STA-CO-RM4-STS-R04
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO RM4-STS-R04 MID MOUNT ASSEMBLY - SPIDERGRIP - R04 Catalog, a revolutionary solution for high-performance automation, workholding, and containment. This heavy duty mid mount assembly features a robot interface hole pattern, along with 8x11 mm thru and 4x10 mm S.F. dowel holes on a 160 mm bolt circle. With a height of 95.0 mm (3.740 in) and a mounting pattern of 8x11 mm thru and 4x10 mm S.F. dowel holes on 160 mm B.C., this product offers unparalleled strength and versatility. Upgrade your machinery with the DESTACO RM4-STS-R04 MID MOUNT ASSEMBLY - SPIDERGRIP - R04 Catalog today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RM4-STS-R04 MID MOUNT ASSEMBLY - SPIDERGRIP - R04
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Heavy duty mid mount assembly with robot interface hole pattern
- Includes 8x11 mm thru and 4x10 mm S.F. dowel holes on 160 mm bolt circle
| Bolt Circle (mm) | 160.0 |
| Bolt Circle (in) | 6.300 |
| Height (mm) | 95.0 |
| Height (in) | 3.740 |
| Mounting Pattern | 8x11 mm thru and 4x10 mm S.F. dowel holes on 160 mm B.C. |
| Product Type | Mid Mount Assembly |
| Weight (kg) | 10.40 |
| Weight (lb) | 22.90 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | spidergrip end effectors |
