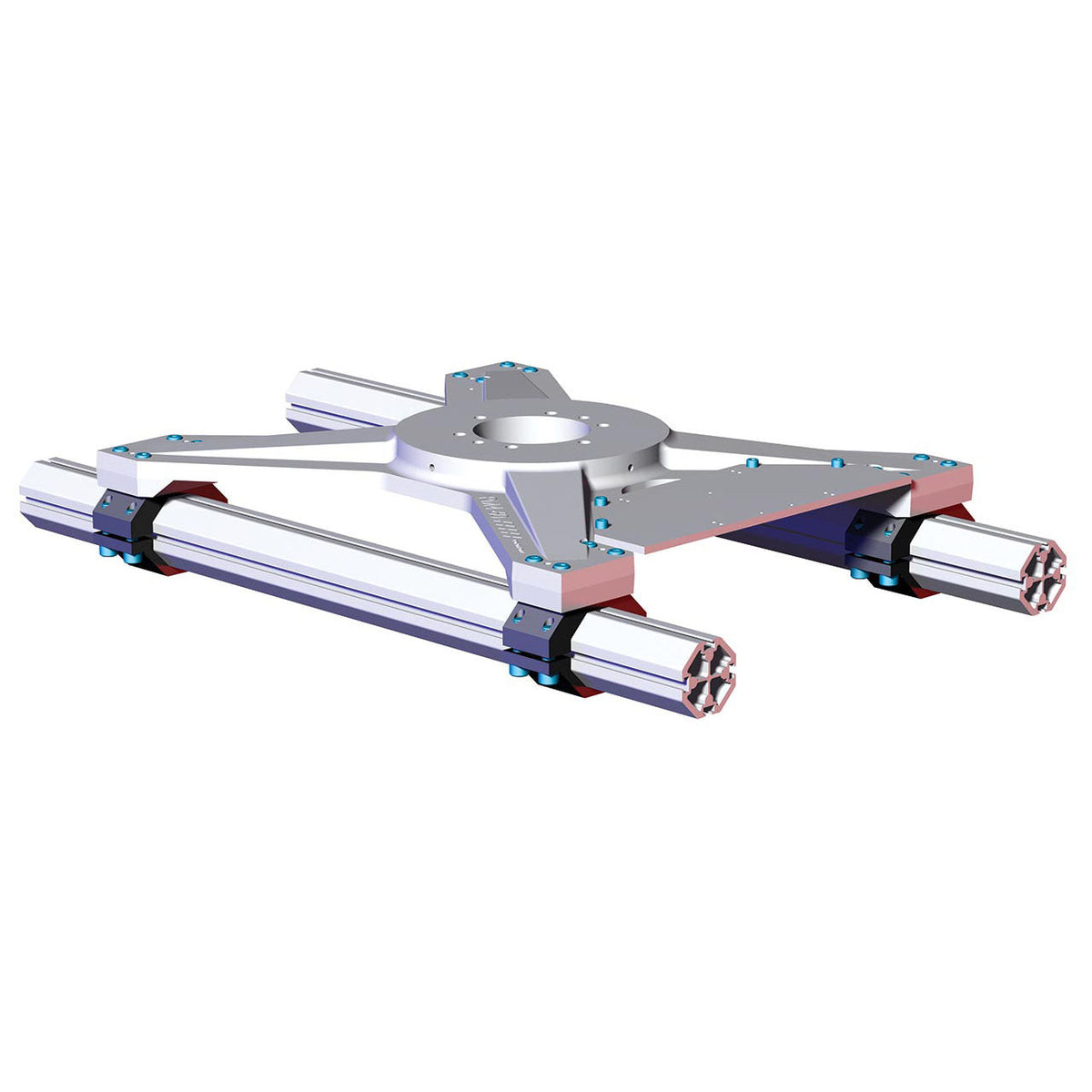

DESTACO RM4-60-R09 MID MOUNT ASSY - R09 W/ INSULATION

Brand: DESTACO

DESTACO RM4-60-R09 MID MOUNT ASSY - R09 W/ INSULATION

SKU: DE-STA-CO-RM4-60-R09
MPN: RM4-60-R09

  • $2,067.54
    Unit price per
  • Save $239.01
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

DESTACO RM4-60-R09 MID MOUNT ASSY - R09 W/ INSULATION
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO RM4-60-R09 MID MOUNT ASSY - R09 W/ INSULATION

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • Can be used as a direct robot interface
  • Provide robust clamping of each extrusion for maximum stability
  • Robot Interface Bolt Pattern R09: 200mm Bolt Circle, Includes Insulation
Tube Diameter (mm) 60
Tube Diameter (in) 2.36
Length (mm) 560.8
Length (in) 22.080
Width (mm) 508.0
Width (in) 20.000
Material Aluminum
Robot Interface Bolt Pattern R09: 200mm Bolt Circle, Includes Insulation
Robot Interface Thru Holes (qty/size) (mm) (6) 20
Robot Interface Dowel Holes (qty/size) (mm) (2) 15
Maximum Static Product Load (kg) 453.6
Maximum Static Product Load (lb) 1,000
Product Type Mid Mount
Tube Size 60B
Weight (kg) 15.50
Weight (lb) 34.20
Product Series Description Automation Adapter
Product Function Robotic Tooling
Product Family End Effectors
Product Group bodybuilder end effector
