Brand: DESTACO

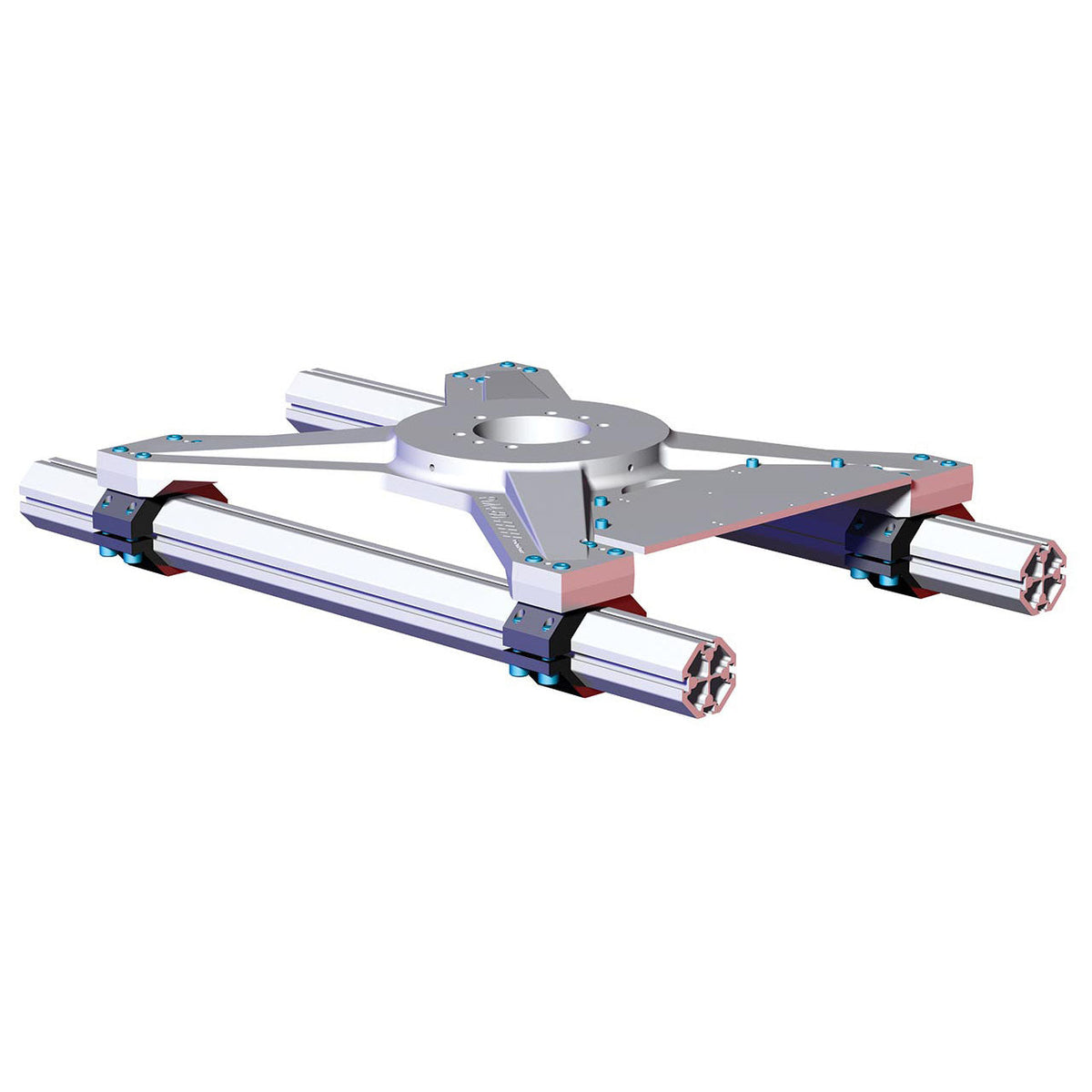

DESTACO RM4-60-R04 MID MOUNT ASSY R04
SKU: DE-STA-CO-RM4-60-R04
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Maximize your automation, workholding, and containment solutions with the DESTACO RM4-60-R04 MID MOUNT ASSY R04. This catalog offers robust clamping of each extrusion for maximum stability and can be used as a direct interface for robots. The R04 bolt pattern has a 160mm bolt circle, with a tube diameter of 60mm (2.36 inches) and a length of 560.8mm (22.080 inches). Made of durable aluminum, this product measures 508.0mm (20.000 inches) in width. Trust DESTACO for high-performance products that deliver results.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RM4-60-R04 MID MOUNT ASSY R04
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R04: 160mm Bolt Circle
| Tube Diameter (mm) | 60 |
| Tube Diameter (in) | 2.36 |
| Length (mm) | 560.8 |
| Length (in) | 22.080 |
| Width (mm) | 508.0 |
| Width (in) | 20.000 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R04: 160mm Bolt Circle |
| Robot Interface Thru Holes (qty/size) (mm) | (8) 11 |
| Robot Interface Dowel Holes (qty/size) (mm) | (4) 10 |
| Maximum Static Product Load (kg) | 453.6 |
| Maximum Static Product Load (lb) | 1,000 |
| Product Type | Mid Mount |
| Tube Size | 60B |
| Weight (kg) | 15.50 |
| Weight (lb) | 34.20 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
