Brand: DESTACO

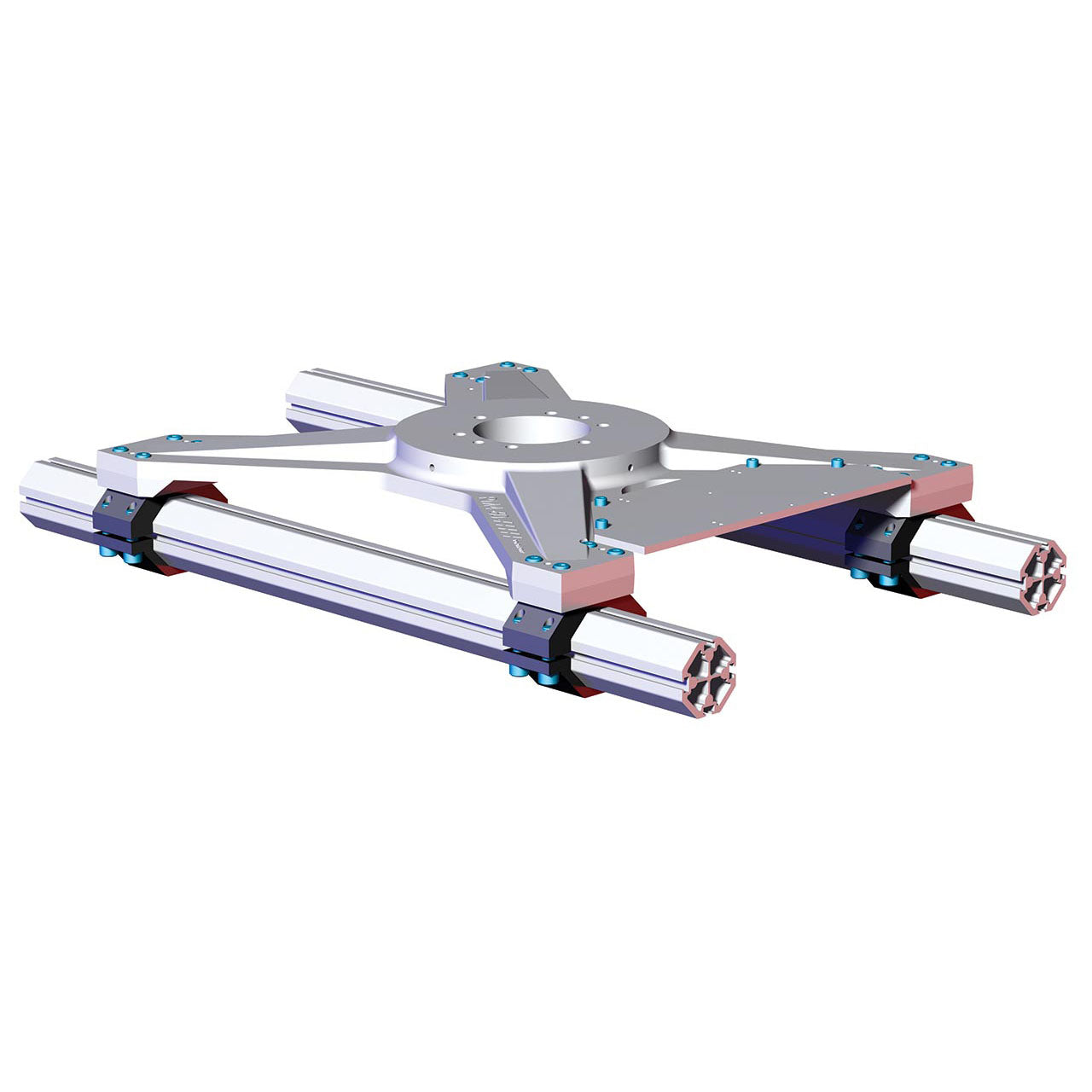

DESTACO RM4-60-R02 MID MOUNT ASSY R02
SKU: DE-STA-CO-RM4-60-R02
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Enhance stability with DESTACO RM4-60-R02 MID MOUNT ASSY R02, the perfect robot interface for maximum clamping power. Designed with a 125mm bolt circle and a 60mm tube diameter, this aluminum mount provides robust support for extrusions up to 22 inches long and 20 inches wide.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RM4-60-R02 MID MOUNT ASSY R02
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R02: 125mm Bolt Circle
| Tube Diameter (mm) | 60 |
| Tube Diameter (in) | 2.36 |
| Length (mm) | 560.8 |
| Length (in) | 22.080 |
| Width (mm) | 508.0 |
| Width (in) | 20.000 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R02: 125mm Bolt Circle |
| Robot Interface Thru Holes (qty/size) (mm) | (10) 11 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 10 |
| Maximum Static Product Load (kg) | 453.6 |
| Maximum Static Product Load (lb) | 1,000 |
| Product Type | Mid Mount |
| Tube Size | 60B |
| Weight (kg) | 15.50 |
| Weight (lb) | 34.20 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
