Brand: DESTACO

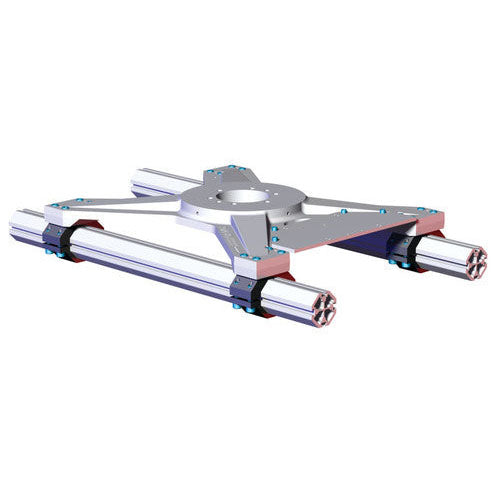

DESTACO RM4-60-R01 MID MOUNT ASSY R01
SKU: DE-STA-CO-RM4-60-R01
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Unlock the full potential of your automation, workholding, and containment solutions with DESTACO RM4-60-R01 MID MOUNT ASSY R01. This high-performance catalog offers robust clamping and maximum stability, making it a perfect direct robot interface. Its 200 mm bolt circle and 60 mm tube diameter provide precise and reliable results, while the aluminum material ensures durability. Don't miss out on this game-changing product!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RM4-60-R01 MID MOUNT ASSY R01
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R01: 200mm Bolt Circle
| Tube Diameter (mm) | 60 |
| Tube Diameter (in) | 2.36 |
| Length (mm) | 560.8 |
| Length (in) | 22.080 |
| Width (mm) | 508.0 |
| Width (in) | 20.000 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R01: 200mm Bolt Circle |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 12.5 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 12 |
| Maximum Static Product Load (kg) | 453.6 |
| Maximum Static Product Load (lb) | 1,000 |
| Product Type | Mid Mount |
| Tube Size | 60B |
| Weight (kg) | 15.50 |
| Weight (lb) | 34.20 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
