Brand: DESTACO

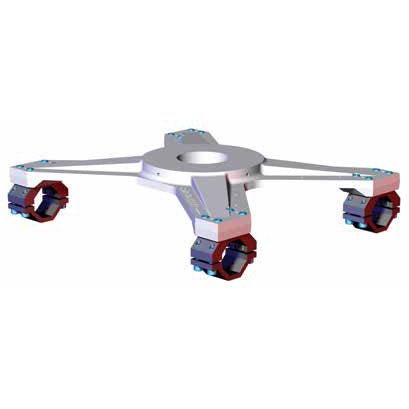

DESTACO RM4-45-R16 MID MOUNT ASSEMBLY - R16 W/ INSULATION
SKU: DE-STA-CO-RM4-45-R16
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the high-performance capabilities of DESTACO RM4-45-R16 MID MOUNT ASSEMBLY - R16 W/ INSULATION. This catalog highlights our commitment to providing top-of-the-line automation, workholding, and containment solutions. Experience unparalleled stability with our direct robot interface, specifically designed with a robust clamping system for each extrusion. The R16 bolt pattern features a 200mm bolt circle and includes insulation for added protection. With a tube diameter of 45mm (1.77in) and a length of 560.0mm (22.050in), this assembly is perfect for your automation needs. The width of 490.0mm (19.290in) is also ideal for maximizing productivity. Crafted from durable aluminum, this assembly is guaranteed to meet your high-performance standards.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RM4-45-R16 MID MOUNT ASSEMBLY - R16 W/ INSULATION
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R16: 200mm Bolt Circle, Includes Insulation
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 560.0 |
| Length (in) | 22.050 |
| Width (mm) | 490.0 |
| Width (in) | 19.290 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R16: 200mm Bolt Circle, Includes Insulation |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 16 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2)15 |
| Maximum Static Product Load (kg) | 453.6 |
| Maximum Static Product Load (lb) | 1,000 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 13.60 |
| Weight (lb) | 29.90 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
