Brand: DESTACO

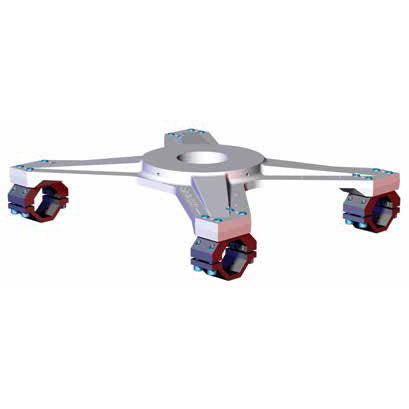

DESTACO RM4-45-R13 MID MOUNT ASSEMBLY - R13
SKU: DE-STA-CO-RM4-45-R13
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover cutting-edge automation, workholding, and containment solutions with DESTACO's RM4-45-R13 MID MOUNT ASSEMBLY - R13! Designed to provide unparalleled clamping and stability, this catalog offers a direct robot interface and a robust clamping system for every extrusion. The R13 model boasts a 125/160 bolt circle, 110 mm pilot, and 5.5mm deep tube diameter, making it the perfect choice for any high-performance project. With a tube diameter of 45mm (1.77 inches), length of 560.0mm (22.050 inches), and width of 490.0mm (19.290 inches), this aluminum assembly is sure to meet all your needs. Upgrade to the R13 today and experience superior performance like never before!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RM4-45-R13 MID MOUNT ASSEMBLY - R13
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R13: 125/160 bolt Circle, 110 mm Pilot, 5.5mm deep
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 560.0 |
| Length (in) | 22.050 |
| Width (mm) | 490.0 |
| Width (in) | 19.290 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R13: 125/160 bolt Circle, 110 mm Pilot, 5.5mm deep |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 11 on 160mm BC, (6) 11 on 125 BC |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 10 on 125mm BC, (2) 10 on 160mm BC |
| Maximum Static Product Load (kg) | 453.6 |
| Maximum Static Product Load (lb) | 1,000 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 13.60 |
| Weight (lb) | 29.90 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
