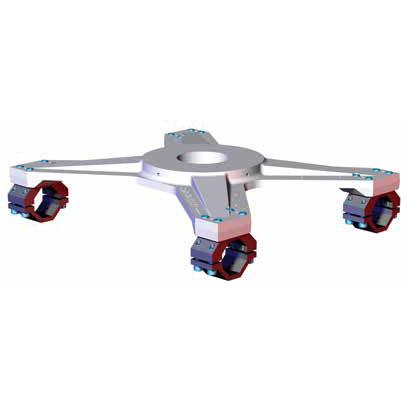

DESTACO RM4-45-R11 MID MOUNT ASSEMBLY - R11 W/ INSULATION

Brand: DESTACO

DESTACO RM4-45-R11 MID MOUNT ASSEMBLY - R11 W/ INSULATION

SKU: DE-STA-CO-RM4-45-R11
MPN: RM4-45-R11

  • Save $243.79
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Maximize stability and precision with DESTACO RM4-45-R11 MID MOUNT ASSEMBLY - R11 W/ INSULATION. The perfect direct robot interface featuring a robust clamping system for each extrusion. Designed with the optimum 200mm Bolt Circle pattern for easy installation and including insulation for added protection. The 45mm tube diameter (1.77 in) allows for smooth and efficient operation while the 560mm length (22.050 in) and 490mm width (19.290 in) deliver maximum performance. Trust the strength and durability of this aluminum product.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO RM4-45-R11 MID MOUNT ASSEMBLY - R11 W/ INSULATION

  • Can be used as a direct robot interface
  • Provide robust clamping of each extrusion for maximum stability
  • Robot Interface Bolt Pattern R11: 200mm Bolt Circle, Includes Insulation
Tube Diameter (mm) 45
Tube Diameter (in) 1.77
Length (mm) 560.0
Length (in) 22.050
Width (mm) 490.0
Width (in) 19.290
Material Aluminum
Robot Interface Bolt Pattern R11: 200mm Bolt Circle, Includes Insulation
Robot Interface Thru Holes (qty/size) (mm) (6) 16
Robot Interface Dowel Holes (qty/size) (mm) (2) 15
Maximum Static Product Load (kg) 453.6
Maximum Static Product Load (lb) 1,000
Product Type Mid Mount
Tube Size 45B
Weight (kg) 13.60
Weight (lb) 29.90
Product Series Description Automation Adapter
Product Function Robotic Tooling
Product Family End Effectors
Product Group bodybuilder end effector
