Brand: DESTACO

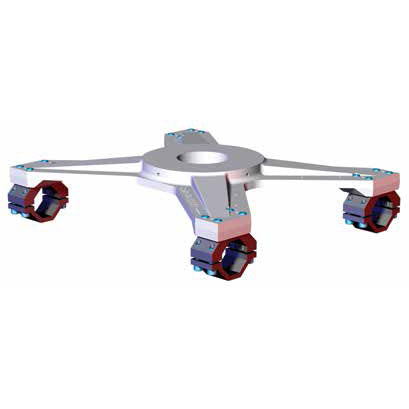

DESTACO RM4-45-R08 MID MOUNT ASSEMBLY - R08 W/ INSULATION
SKU: DE-STA-CO-RM4-45-R08
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the power of DESTACO RM4-45-R08 MID MOUNT ASSEMBLY - R08 W/ INSULATION, the go-to catalog for high-performance automation, workholding, and containment solutions. Designed for direct robot interface and featuring a robust clamping system for maximum stability, it includes a 160mm bolt circle and insulation tube. With a 45mm tube diameter (1.77 inches) and overall dimensions of 560mm x 490mm (22.050 inches x 19.290 inches), this assembly is made from high-grade aluminum for superior durability and performance.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RM4-45-R08 MID MOUNT ASSEMBLY - R08 W/ INSULATION
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R08: 160mm Bolt Circle, Includes Insulation
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 560.0 |
| Length (in) | 22.050 |
| Width (mm) | 490.0 |
| Width (in) | 19.290 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R08: 160mm Bolt Circle, Includes Insulation |
| Robot Interface Thru Holes (qty/size) (mm) | (8) 16 on 160mm BC |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 13 on 125mm BC |
| Maximum Static Product Load (kg) | 453.6 |
| Maximum Static Product Load (lb) | 1,000 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 13.60 |
| Weight (lb) | 29.90 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
