Brand: DESTACO

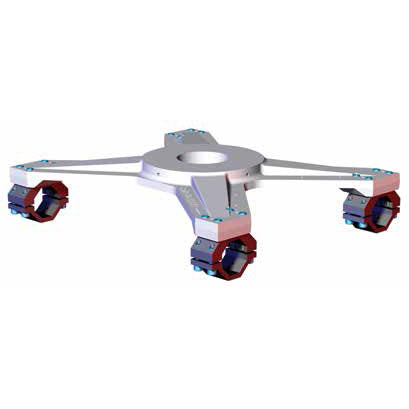

DESTACO RM4-45-R04 MID MOUNT ASSEMBLY - R04
SKU: DE-STA-CO-RM4-45-R04
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industries and individuals can take advantage of the unbeatable performance and robust design of the DESTACO RM4-45-R04 MID MOUNT ASSEMBLY - R04, which serves as a direct robot interface. With a bolt pattern of 160mm and a tube diameter of 45mm (1.77 inches), this assembly offers maximum stability and precise clamping for each extrusion. The use of high-quality aluminum material further enhances its durability. Transform your production process with this top-of-the-line assembly!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RM4-45-R04 MID MOUNT ASSEMBLY - R04
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R04: 160mm Bolt Circle
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 560.0 |
| Length (in) | 22.050 |
| Width (mm) | 490.0 |
| Width (in) | 19.290 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R04: 160mm Bolt Circle |
| Robot Interface Thru Holes (qty/size) (mm) | (8) 11 |
| Robot Interface Dowel Holes (qty/size) (mm) | (4) 10 |
| Maximum Static Product Load (kg) | 453.6 |
| Maximum Static Product Load (lb) | 1,000 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 13.60 |
| Weight (lb) | 29.90 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
