Brand: DESTACO

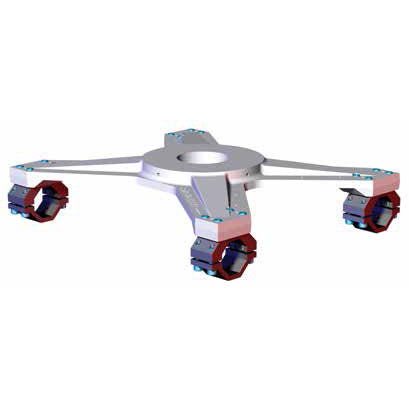

DESTACO RM4-45-R03 MID MOUNT ASSEMBLY - R03 W/ INSULATION
SKU: DE-STA-CO-RM4-45-R03
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Enhance your automation, workholding, and containment solutions with the versatile and reliable DESTACO RM4-45-R03 MID MOUNT ASSEMBLY - R03 W/ INSULATION. Designed to provide a robust clamping system for each extrusion, this product features a bolt pattern of 160mm in a 1.77 inch tube with a length of 560.0mm and a width of 490.0mm, all constructed with durable aluminum material. Get ready to maximize stability and achieve high-performance with this indispensable addition to your robot interface setup. Order now and experience the power of DESTACO!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RM4-45-R03 MID MOUNT ASSEMBLY - R03 W/ INSULATION
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R03: 160mm Bolt Circle, Includes Insulation
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 560.0 |
| Length (in) | 22.050 |
| Width (mm) | 490.0 |
| Width (in) | 19.290 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R03: 160mm Bolt Circle, Includes Insulation |
| Robot Interface Thru Holes (qty/size) (mm) | (8) 14 |
| Robot Interface Dowel Holes (qty/size) (mm) | (4) 13 |
| Maximum Static Product Load (kg) | 453.6 |
| Maximum Static Product Load (lb) | 1,000 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 13.60 |
| Weight (lb) | 29.90 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
