Brand: DESTACO

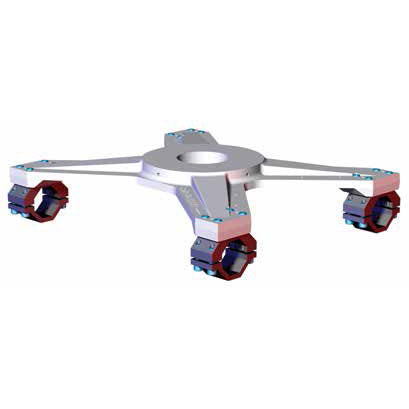

DESTACO RM4-45-R01 MID MOUNT ASSEMBLY - R01
SKU: DE-STA-CO-RM4-45-R01
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Get the DESTACO RM4-45-R01 MID MOUNT ASSEMBLY - R01 Catalog for High-Performance Automation, Workholding, & Containment Solutions and discover its unmatched capabilities. Use it as a strong and stable robot interface with a 200mm bolt circle and 45mm tube diameter. Made of aluminum, it measures 560mm in length and 490mm in width, providing maximum strength and durability. Elevate your automation process with DESTACO.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RM4-45-R01 MID MOUNT ASSEMBLY - R01
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R01: 200mm Bolt Circle
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 560.0 |
| Length (in) | 22.050 |
| Width (mm) | 490.0 |
| Width (in) | 19.290 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R01: 200mm Bolt Circle |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 12.5 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 12 |
| Maximum Static Product Load (kg) | 453.6 |
| Maximum Static Product Load (lb) | 1,000 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 13.60 |
| Weight (lb) | 29.90 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
