Brand: DESTACO

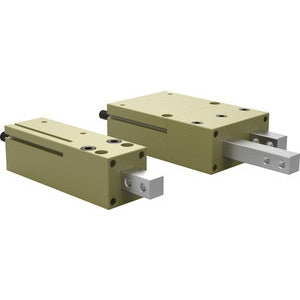

DESTACO RFE-13M FEED ESCAPEMENT

SKU: DE-STA-CO-RFE-13M
MPN: RFE-13M

$767.03
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO RFE-13M FEED ESCAPEMENT
Feed Escapements. The RFE series of feed escapements offer failsafe locking fingers, sealed design to prevent internal component wear, and built-in sensor mounting slots. They are the most effective mechanism for separating components fed from a track or conveyor.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO RFE-13M FEED ESCAPEMENT

The RFE series of feed escapements offer failsafe locking fingers, sealed design to prevent internal component wear, and built-in sensor mounting slots. They are the most effective mechanism for separating components fed from a track or conveyor.

Finger locking mechanism ensures that only one finger can be retracted at one time for proper part feeding
Square shaft prevents shaft from rotating
Unit can be mounted using top, bottom, or face surface

Imperial or Metric Product	Metric Version
Stroke (mm)	31.8
Stroke (in)	1.250
Thrust Force (N)	400
Thrust Force (lbsf)	90
Pressure Range (bar)	40-100 psi
Temp Range Standard	-35‚° to 80‚°C (-30‚° to 180‚°F)
Temp Range Viton	-30‚° to 150‚°C (-20‚° to 300‚°F)
Actuation (Open/Closed) (Sec)	1
Max Air Pressure (PSI)	100
Max Air Pressure (bar)	7
Max Moment Load (in-lbs)	50
Max Moment Load (Nm)	6
Product Type	Double Finger
Weight (kg)	0.83
Weight (lb)	1.84
Product Series Description	Feed Escapement Single Acting
Product Function	Linear Positioning
Product Family	Thrusters / Slides
Product Group	feed escapements
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
