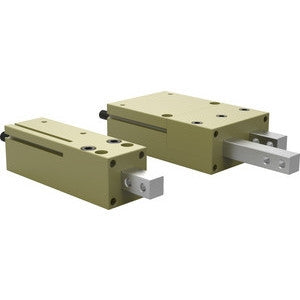

DESTACO RFE-11M FEED ESCAPEMENT

Brand: DESTACO

DESTACO RFE-11M FEED ESCAPEMENT

SKU: DE-STA-CO-RFE-11M
MPN: RFE-11M

  • $625.54
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

DESTACO RFE-11M FEED ESCAPEMENT
Feed Escapements. The RFE series of feed escapements offer failsafe locking fingers, sealed design to prevent internal component wear, and built-in sensor mounting slots. They are the most effective mechanism for separating components fed from a track or conveyor.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO RFE-11M FEED ESCAPEMENT

The RFE series of feed escapements offer failsafe locking fingers, sealed design to prevent internal component wear, and built-in sensor mounting slots. They are the most effective mechanism for separating components fed from a track or conveyor.

  • Finger locking mechanism ensures that only one finger can be retracted at one time for proper part feeding
  • Square shaft prevents shaft from rotating
  • Unit can be mounted using top, bottom, or face surface
Imperial or Metric Product Metric Version
Stroke (mm) 15.9
Stroke (in) 0.626
Thrust Force (N) 111
Thrust Force (lbsf) 25
Pressure Range (bar) 40-100 psi
Temp Range Standard -35‚° to 80‚°C (-30‚° to 180‚°F)
Temp Range Viton -30‚° to 150‚°C (-20‚° to 300‚°F)
Actuation (Open/Closed) (Sec) 0
Max Air Pressure (PSI) 100
Max Air Pressure (bar) 7
Max Moment Load (in-lbs) 50
Max Moment Load (Nm) 6
Product Type Double Finger
Weight (kg) 0.15
Weight (lb) 0.33
Product Series Description Feed Escapement Single Acting
Product Function Linear Positioning
Product Family Thrusters / Slides
Product Group feed escapements
Brand Robohand
Distributor Group Robohand Gripping Solutions
