Brand: DESTACO

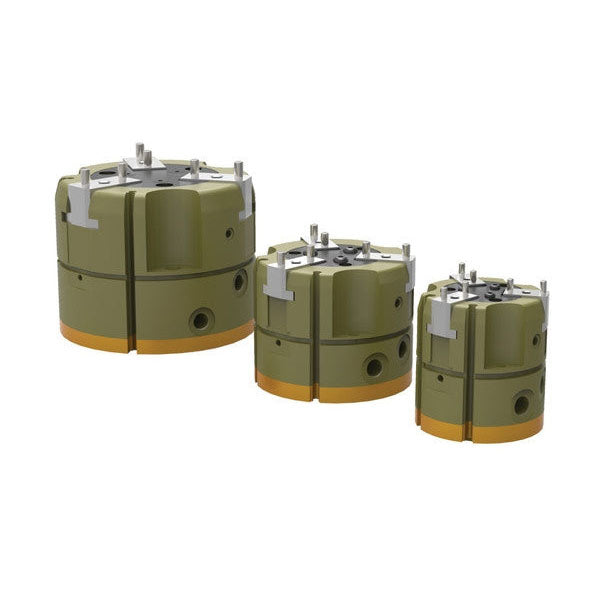

DESTACO ROBOHAND REP-83-P-C 3 JAW PARALLEL GRIPPER
SKU: DE-STA-CO-REP-83-P-C
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO REP-83-P-C 3 JAW PARALLEL GRIPPER, known as the REP3 Series, boasts a compact design with a cam-lever and is suitable for various applications. It is protected for use in harsh environments and offers standard or extended stroke options. The mechanism is shielded and includes sensing options like Inductive (SD), Magneto-resistive, probe (T), and integrated sensors (KH, KS). Additional options such as spring safety (RE or RI), tandem (M) to double the force, Viton (V) for high temperatures, and hydraulic (H) are available. This powerful tool is perfect for heavy industrial uses, offering a Metric Grip Force of 939N (211 lbsf), a 20.0mm (0.787in) stroke, and a 60mm (2.36in) cylinder bore.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO REP-83-P-C 3 JAW PARALLEL GRIPPER
The REP3 Series are compact precision parallel grippers with a cam-lever design for general purpose applications. Shielded for harsh environments. Standard or extended (-C) strokes available
- Shielded case to protect the mechanism
- Sensing options: Inductive (SD), Magneto-resistive, probe (T), integrated sensor (KH, KS)
- Options: spring safety (RE or RI), tandem (M) to double the force, Viton (V) for high temperatures, hydraulic (H)
- Use in heavy industrial applications
| Product | Metric |
| Grip Force (N) | 939 |
| Grip Force (lbsf) | 211 |
| Stroke (mm) | 20.0 |
| Stroke (in) | 0.787 |
| Cylinder Bore (mm) | 60 |
| Cylinder Bore (in) | 2.36 |
| Pressure Range (psi) | 30 - 100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Repeatability (±mm) | 0.020 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 102 |
| Maximum Finger Length (in) | 4.00 |
| Product Type | 3 Jaw Parallel |
| Special Feature | Hydraulic Option |
| Jaw Operation | Synchronous |
| Spring Assist | Optional |
| Stroke per Jaw (mm) | 10.00 |
| Stroke per Jaw (in) | 0.40 |
| Weight (kg) | 0.90 |
| Weight (lb) | 1.98 |
| Product Series Description | 3-Jaw Parallel Gripper |
| Number of Jaws | 3 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
