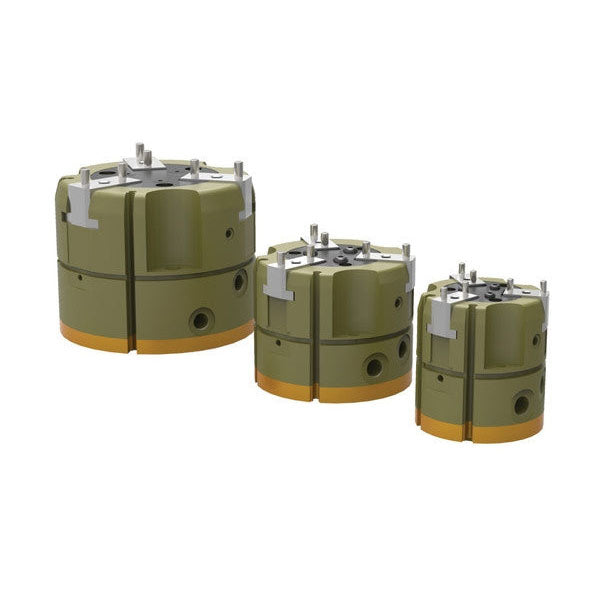

DESTACO REP-83-P 3 JAW PARALLEL GRIPPER
SKU: DE-STA-CO-REP-83-P
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the power and precision of the DESTACO REP-83-P 3 JAW PARALLEL GRIPPER. With a compact design and cam-lever mechanism, this gripper is perfect for a wide range of applications. Its shielded case is built to endure harsh environments, and you can choose from standard or extended strokes for even more versatility. With various sensing options and additional features like spring safety and tandem capability, this gripper is ideal for heavy industrial use. Don't settle for less - upgrade to the DESTACO REP3 Series today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO REP-83-P 3 JAW PARALLEL GRIPPER
The REP3 Series are compact precision parallel grippers with a cam-lever design for general purpose applications. Shielded for harsh environments. Standard or extended (-C) strokes available
- Shielded case to protect the mechanism
- Sensing options: Inductive (SD), Magneto-resistive, probe (T), integrated sensor (KH, KS)
- Options: spring safety (RE or RI), tandem (M) to double the force, Viton (V) for high temperatures, hydraulic (H)
- Use in heavy industrial applications
| Product | Metric |
| Grip Force (N) | 2,007 |
| Grip Force (lbsf) | 409 |
| Stroke (mm) | 13.0 |
| Stroke (in) | 0.512 |
| Cylinder Bore (mm) | 60 |
| Cylinder Bore (in) | 2.36 |
| Pressure Range (psi) | 30 - 100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Repeatability (±mm) | 0.020 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 102 |
| Maximum Finger Length (in) | 4.00 |
| Product Type | 3 Jaw Parallel |
| Special Feature | Hydraulic Option |
| Jaw Operation | Synchronous |
| Spring Assist | Optional |
| Stroke per Jaw (mm) | 6.50 |
| Stroke per Jaw (in) | 0.26 |
| Weight (kg) | 0.90 |
| Weight (lb) | 1.98 |
| Product Series Description | 3-Jaw Parallel Gripper |
| Number of Jaws | 3 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
