Brand: DESTACO

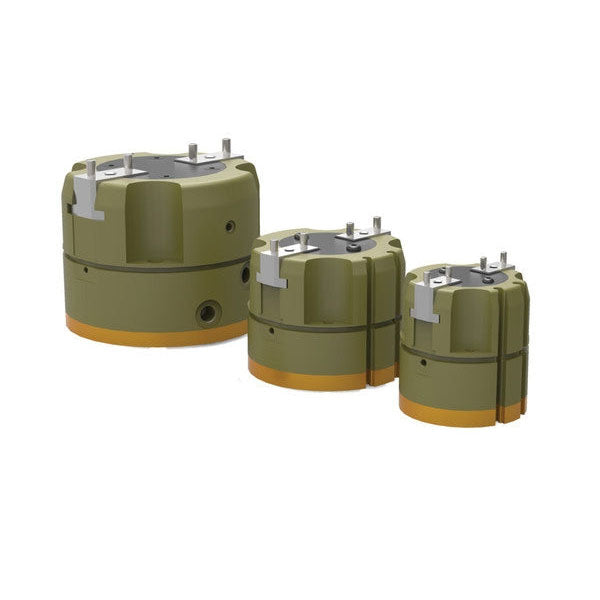

DESTACO ROBOHAND REP-82-P 2 JAW PARALLEL GRIPPER
SKU: DE-STA-CO-REP-82-P
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO REP-82-P 2 JAW PARALLEL GRIPPER - the compact and precise gripping solution designed to excel in a variety of applications. Whether it's for general use or harsh environments, the cam-lever design and shielded case ensure optimal performance and durability. With options like sensing capabilities, spring safety, tandem force doubling, and more, this gripper can handle heavy industrial tasks with ease. Don't settle for anything less than the best - choose the REP2 Series for unmatched grip force and adaptability.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO REP-82-P 2 JAW PARALLEL GRIPPER
The REP2 Series are compact precision parallel grippers with a cam-lever design for general purpose applications. Shielded for harsh environments. Standard or extended (-C) strokes available
- Shielded case to protect the mechanism
- Sensing options: Inductive (SD), Magneto-resistive, probe (T), integrated sensor (KH, KS)
- Options: spring safety (RE or RI), tandem (M) to double the force, Viton (V) for high temperatures, hydraulic (H)
- Use in heavy industrial applications
| Product | Metric |
| Grip Force (N) | 2,140 |
| Grip Force (lbsf) | 436 |
| Stroke (mm) | 13.0 |
| Stroke (in) | 0.512 |
| Cylinder Bore (mm) | 60 |
| Cylinder Bore (in) | 2.36 |
| Pressure Range (psi) | 30-100 psi |
| Temp Range Standard | -35‚° to 80‚°C (-30‚° to 180‚°F) |
| Temp Range Viton | -30‚° to 150‚°C (-20‚° to 300‚°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Repeatability (‚±mm) | 0.020 |
| Repeatability (‚±in) | 0.001 |
| Maximum Finger Length (mm) | 102 |
| Maximum Finger Length (in) | 4.00 |
| Product Type | 2 Jaw Parallel |
| Special Feature | Hydraulic Option |
| Jaw Operation | Synchronous |
| Spring Assist | Optional |
| Weight (kg) | 0.90 |
| Weight (lb) | 1.98 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
