Brand: DESTACO

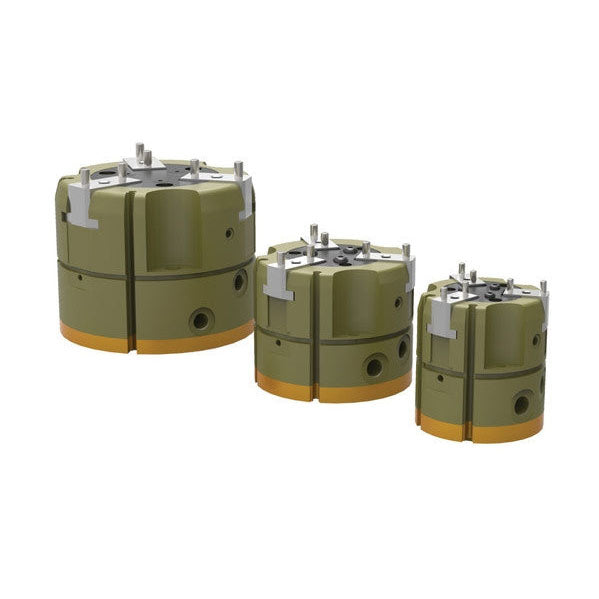

DESTACO ROBOHAND REP-63-P-C 3 JAW PARALLEL GRIPPER
SKU: DE-STA-CO-REP-63-P-C
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO REP-63-P-C 3 JAW PARALLEL GRIPPER - the perfect solution for all your industrial gripping needs. Compact, precise, and designed with a cam-lever mechanism, this gripper is ideal for a variety of applications. With options for extended strokes, sensing capabilities, and safety measures, the REP3 Series is versatile and reliable. Don't let harsh environments hold you back - the shielded case and variety of options make this gripper a top choice. Take your industrial processes to the next level with the DESTACO REP-63-P-C 3 JAW PARALLEL GRIPPER.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO REP-63-P-C 3 JAW PARALLEL GRIPPER
The REP3 Series are compact precision parallel grippers with a cam-lever design for general purpose applications. Shielded for harsh environments. Standard or extended (-C) strokes available
- Shielded case to protect the mechanism
- Sensing options: Inductive (SD), Magneto-resistive, probe (T), integrated sensor (KH, KS)
- Options: spring safety (RE or RI), tandem (M) to double the force, Viton (V) for high temperatures, hydraulic (H)
- Use in heavy industrial applications
| Product | Metric |
| Grip Force (N) | 360 |
| Grip Force (lbsf) | 81 |
| Stroke (mm) | 16.0 |
| Stroke (in) | 0.630 |
| Cylinder Bore (mm) | 40 |
| Cylinder Bore (in) | 1.57 |
| Pressure Range (psi) | 30 - 100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Repeatability (±mm) | 0.020 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 76 |
| Maximum Finger Length (in) | 3.00 |
| Product Type | 3 Jaw Parallel |
| Special Feature | Hydraulic Option |
| Jaw Operation | Synchronous |
| Spring Assist | Optional |
| Stroke per Jaw (mm) | 8.00 |
| Stroke per Jaw (in) | 0.32 |
| Weight (kg) | 0.55 |
| Weight (lb) | 1.21 |
| Product Series Description | 3-Jaw Parallel Gripper |
| Number of Jaws | 3 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
