Brand: DESTACO

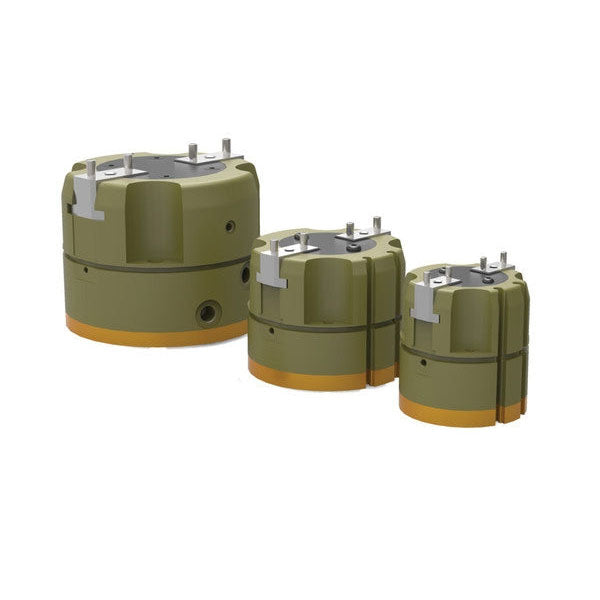

DESTACO ROBOHAND REP-62-P 2 JAW PARALLEL GRIPPER
SKU: DE-STA-CO-REP-62-P
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO REP-62-P 2 JAW PARALLEL GRIPPER is designed for a wide range of applications, offering compact precision and a cam-lever design. Shielded for harsh environments, this gripper comes with standard or extended (-C) strokes. Its shielded case protects the mechanism while sensing options such as inductive (SD), magneto-resistive, probe (T), and integrated sensor (KH, KS) provide even more versatility. For added safety and force, choose from options like spring safety (RE or RI) or tandem (M) to double the force. To handle high temperatures, opt for Viton (V) and for heavy industrial applications, choose the hydraulic (H) option. With a maximum grip force of 771 N or 157 lbsf and a stroke of 10.0 mm or 0.394 inches, this gripper boasts a cylinder bore of 40 mm or 1.57 inches.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO REP-62-P 2 JAW PARALLEL GRIPPER
The REP2 Series are compact precision parallel grippers with a cam-lever design for general purpose applications. Shielded for harsh environments. Standard or extended (-C) strokes available
- Shielded case to protect the mechanism
- Sensing options: Inductive (SD), Magneto-resistive, probe (T), integrated sensor (KH, KS)
- Options: spring safety (RE or RI), tandem (M) to double the force, Viton (V) for high temperatures, hydraulic (H)
- Use in heavy industrial applications
| Product | Metric |
| Grip Force (N) | 771 |
| Grip Force (lbsf) | 157 |
| Stroke (mm) | 10.0 |
| Stroke (in) | 0.394 |
| Cylinder Bore (mm) | 40 |
| Cylinder Bore (in) | 1.57 |
| Pressure Range (psi) | 30-100 psi |
| Temp Range Standard | -35‚° to 80‚°C (-30‚° to 180‚°F) |
| Temp Range Viton | -30‚° to 150‚°C (-20‚° to 300‚°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Repeatability (‚±mm) | 0.020 |
| Repeatability (‚±in) | 0.001 |
| Maximum Finger Length (mm) | 76 |
| Maximum Finger Length (in) | 3.00 |
| Product Type | 2 Jaw Parallel |
| Special Feature | Hydraulic Option |
| Jaw Operation | Synchronous |
| Spring Assist | Optional |
| Weight (kg) | 0.55 |
| Weight (lb) | 1.21 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
