Brand: DESTACO

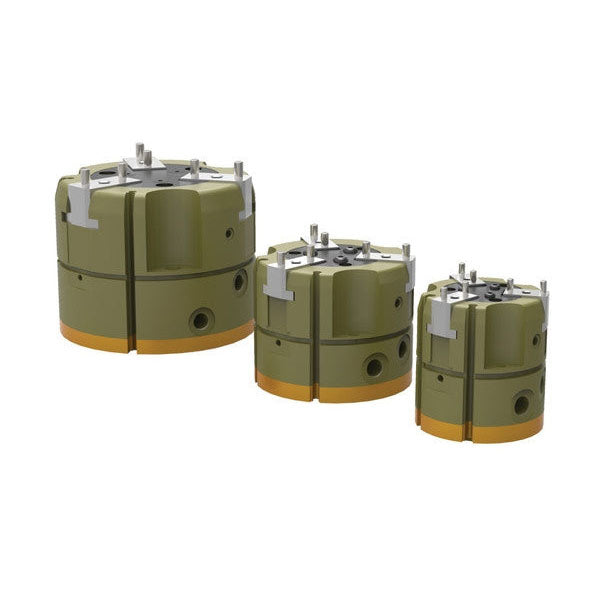

DESTACO ROBOHAND REP-113-P-C 3 JAW PARALLEL GRIPPER
SKU: DE-STA-CO-REP-113-P-C
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the exceptional precision and versatility of the DESTACO REP-113-P-C 3 JAW PARALLEL GRIPPER from the REP3 Series. Designed with a cam-lever mechanism, these compact grippers are perfect for any general purpose application. Shielded for even the most demanding environments, they offer options for extended strokes (-C), sensor integration (KH, KS), and more. Choose from various features such as spring safety (RE or RI), tandem (M) for double the force, Viton (V) for extreme temperatures, and even hydraulic (H) capabilities. Trust the reliability and strength of this gripper for all your heavy industrial needs, with a maximum grip force of 1,579 N (355 lbsf) and a stroke length of 30.0 mm (1.118 in).
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO REP-113-P-C 3 JAW PARALLEL GRIPPER
The REP3 Series are compact precision parallel grippers with a cam-lever design for general purpose applications. Shielded for harsh environments. Standard or extended (-C) strokes available
- Shielded case to protect the mechanism
- Sensing options: Inductive (SD), Magneto-resistive, probe (T), integrated sensor (KH, KS)
- Options: spring safety (RE or RI), tandem (M) to double the force, Viton (V) for high temperatures, hydraulic (H)
- Use in heavy industrial applications
| Product | Metric |
| Grip Force (N) | 1,579 |
| Grip Force (lbsf) | 355 |
| Stroke (mm) | 30.0 |
| Stroke (in) | 1.118 |
| Cylinder Bore (mm) | 76 |
| Cylinder Bore (in) | 3 |
| Pressure Range (psi) | 30 - 100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Repeatability (±mm) | 0.020 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 140 |
| Maximum Finger Length (in) | 5.50 |
| Product Type | 3 Jaw Parallel |
| Special Feature | Hydraulic Option |
| Jaw Operation | Synchronous |
| Spring Assist | Optional |
| Stroke per Jaw (mm) | 15.00 |
| Stroke per Jaw (in) | 0.59 |
| Weight (kg) | 2.45 |
| Weight (lb) | 5.40 |
| Product Series Description | 3-Jaw Parallel Gripper |
| Number of Jaws | 3 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
