Brand: DESTACO
DESTACO ROBOHAND RDH-5M-L 2 JAW PARALLEL GRIPPER
SKU: DE-STA-CO-RDH-5M-L
MPN:
In-Stock: 4
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO RDH-5M-L 2 JAW PARALLEL GRIPPER offers powerful and precise handling for various applications. With a robust and compact design, this gripper is highly repeatable and can withstand harsh environments. Its large jaw surface area and available sizes make it versatile for use with long fingers. Additionally, it boasts impressive grip force measurements and a durable, shielded design to repel chips and particles. Don't miss out on this high-performance gripper for all your handling needs!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description

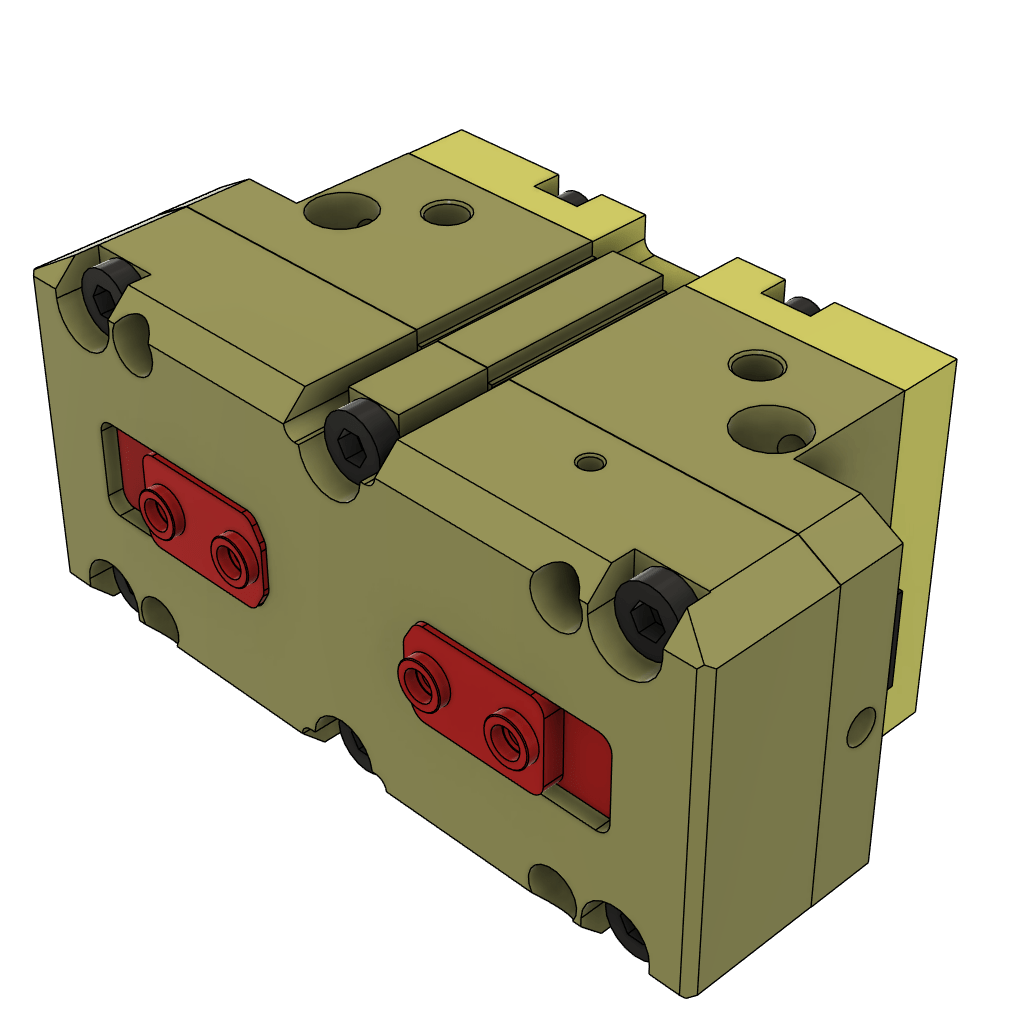

DESTACO RDH-5M-L 2 JAW PARALLEL GRIPPER
This compact, robust and powerful gripper offers excellent repeatibility for precise handling in a wide range of applications.
- Harsh Environment: Shielded design repels chips and other particulate
- All sizes available in two strokes
- Large surface area on jaws allows for long fingers
| Product | Metric |
| Grip Force (N) | 4,125 |
| Grip Force (lbsf) | 927 |
| Grip Force with Spring Assist (N) | 2,999 |
| Grip Force with Spring Assist (lb) | 675 |
| Stroke (mm) | 26.0 |
| Stroke (in) | 1.020 |
| Cylinder Bore (mm) | 69.1 |
| Cylinder Bore (in) | 2.72 |
| Pressure Range Without Springs | 30-100 psi |
| Pressure Range With Springs | 60-100 psi |
| Max Vacuum (in. Hg) | 8 |
| Max Vacuum (mm Hg) | 20 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.060 |
| Repeatability (±mm) | 0.030 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 203 |
| Maximum Finger Length (in) | 8.00 |
| Product Type | 2 Jaw Parallel |
| Clean Room with Scavange | 100 |
| Special Feature | Heavy Duty |
| Jaw Operation | Synchronous |
| Spring Assist | Optional |
| Weight (kg) | 3.90 |
| Weight (lb) | 8.60 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
