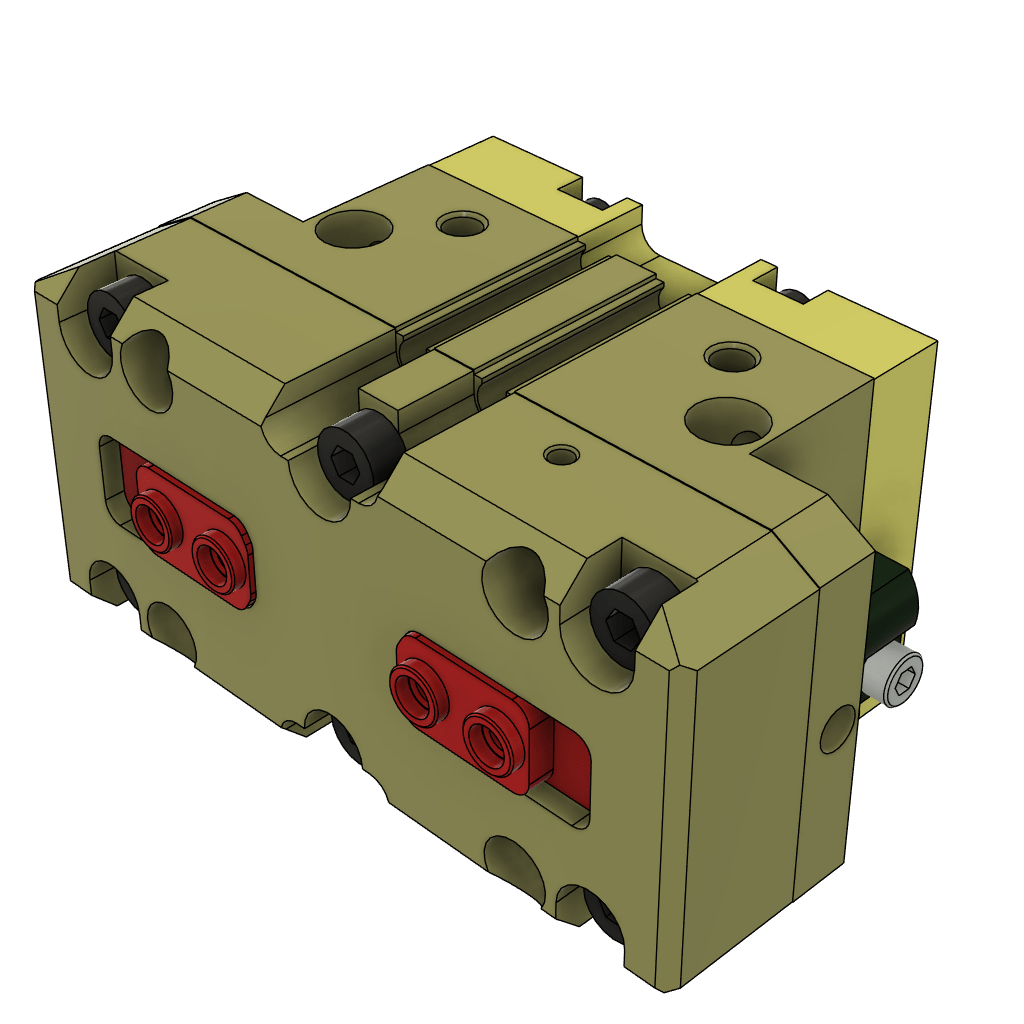

DESTACO ROBOHAND RDH-2M-L 2 JAW PARALLEL GRIPPER
SKU: DE-STA-CO-RDH-2M-L
MPN:
In-Stock: 5
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the ultimate in precision handling with the compact, robust, and powerful DESTACO RDH-2M-L 2 JAW PARALLEL GRIPPER. Its shielded design repels chips and other particulate, making it ideal for harsh environments. With a large surface area on the jaws and excellent repeatibility, this gripper is perfect for a wide range of applications. Available in all sizes and with two strokes, it boasts a product metric grip force of 812N (183lbsf). For an extra boost of grip force, choose the spring assist option of 661N (149lbs). With a stroke of 12.0mm (0.470in) and a cylinder bore of 32mm (1.26in), this gripper is ready to enhance your handling efficiency.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RDH-2M-L 2 JAW PARALLEL GRIPPER
This compact, robust and powerful gripper offers excellent repeatibility for precise handling in a wide range of applications.
- Harsh Environment: Shielded design repels chips and other particulate
- All sizes available in two strokes
- Large surface area on jaws allows for long fingers
| Product | Metric |
| Grip Force (N) | 812 |
| Grip Force (lbsf) | 183 |
| Grip Force with Spring Assist (N) | 661 |
| Grip Force with Spring Assist (lb) | 149 |
| Stroke (mm) | 12.0 |
| Stroke (in) | 0.470 |
| Cylinder Bore (mm) | 32 |
| Cylinder Bore (in) | 1.26 |
| Pressure Range Without Springs | 30-100 psi |
| Pressure Range With Springs | 65-100 psi |
| Max Vacuum (in. Hg) | 8 |
| Max Vacuum (mm Hg) | 20 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.040 |
| Repeatability (±mm) | 0.020 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 102 |
| Maximum Finger Length (in) | 4.00 |
| Product Type | 2 Jaw Parallel |
| Clean Room with Scavange | 100 |
| Special Feature | Heavy Duty |
| Jaw Operation | Synchronous |
| Spring Assist | Optional |
| Weight (kg) | 0.53 |
| Weight (lb) | 1.20 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
