Brand: DESTACO

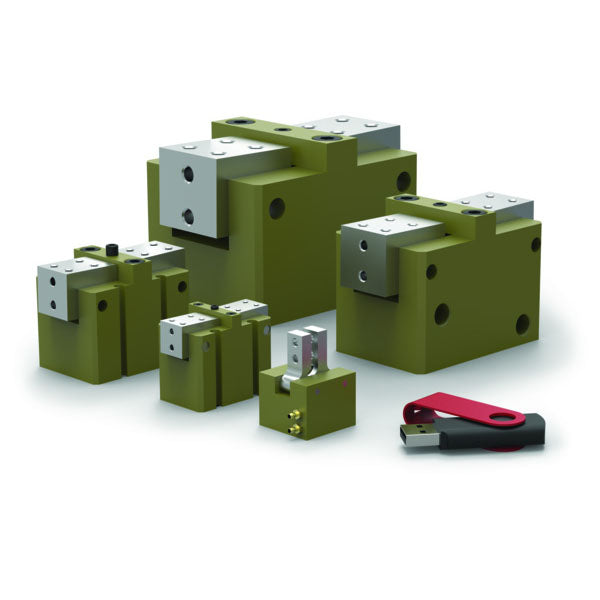

DESTACO RA-90 2 JAW ANGULAR CAM DRIVEN GRIPPER

SKU: DE-STA-CO-RA-90
MPN: RA-90

$1,239.90
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO RA-90 2 JAW ANGULAR CAM DRIVEN GRIPPER: This remarkable 2 jaw toggle locking angular gripper utilizes the mechanical advantages of a toggle mechanism, providing an extremely high gripforce upon completion of the stroke. When fully closed, it securely locks in the part until air pressure is applied. With its fail-safe mechanical locking mechanism and rugged design, it offers a high grip force-to-size ratio. Its impressive Imperial Grip Force of 356N (80lbsf) and 90 degree opening angle make it a top choice for industrial applications.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO RA-90 2 JAW ANGULAR CAM DRIVEN GRIPPER

2 jaw toggle locking angular gripper uses the mechanical advantages of a toggle mechanism to create a very high gripforce at the completion of the stoke. At full close the gripper locks in such that it cannot release part unless air pressure is applied.

Failsafe mechanical locking mechanism
High grip force-to-size ratio
Rugged design

Product	Imperial
Grip Force (N)	356
Grip Force (lbsf)	80
Opening Angle (deg)	90
Cylinder Bore (mm)	19.9
Cylinder Bore (in)	0.782
Opening Per Jaw (degrees)	90
Pressure Range (bar)	3-7
Pressure Range (psi)	40-100
Displacement (cm³)	7.50
Displacement (in³)	0.460
Temp Range Standard	-35° to 80°C (-30° to 180°F)
Temp Range Viton	-30° to 150°C (-20° to 300°F)
Actuation (Open/Closed) (Sec)	0
Actuation Time (Open) (Sec)	0.16
Actuation Time (close) (Sec)	0.16
Accuracy (±mm)	0.080
Accuracy (±in)	0.003
Repeatability (±mm)	0.030
Repeatability (±in)	0.001
Maximum Finger Length (mm)	50
Maximum Finger Length (in)	2.00
Protection Class	IP43
Product Type	2 Jaw Angular
Special Feature	Heavy Duty
Jaw Operation	Synchronous
Spring Assist	No
Weight (kg)	0.20
Weight (lb)	0.44
Product Series Description	2-Jaw Angular Gripper
Number of Jaws	2
Product Function	Gripping
Product Family	Grippers
Product Group	Angular Grippers
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
