Brand: DESTACO

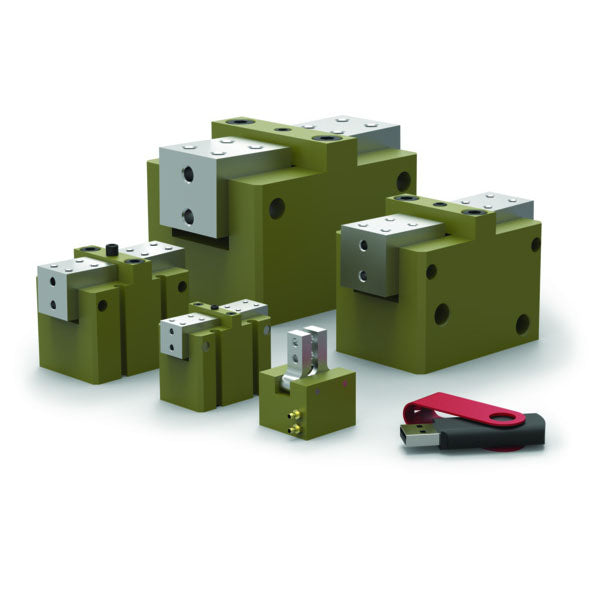

DESTACO RA-8 2 JAW ANGULAR CAM DRIVEN GRIPPER
SKU: DE-STA-CO-RA-8
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO RA-8 2 JAW ANGULAR CAM DRIVEN GRIPPER - the industry's go-to for style and high gripforces! With a rugged design and simplified drive mechanism, these grippers pack a punch in a compact size. Don't miss out on the incredible value of the RA series. Grip anything with ease thanks to the 801 Imperial Grip Force (180 lbsf) and 30 degree opening angle. Exclusively featuring a 63.5mm cylinder bore (2.5in) and 15 degree opening per jaw.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RA-8 2 JAW ANGULAR CAM DRIVEN GRIPPER
This style 2 jaw angular gripper is the most widely used in the industry. The RA series offers a rugged design and supplies very high gripforces for its size. It''s simplified drive mechanism make these grippers an excellent value.
| Product | Imperial |
| Grip Force (N) | 801 |
| Grip Force (lbsf) | 180 |
| Opening Angle (deg) | 30 |
| Cylinder Bore (mm) | 63.5 |
| Cylinder Bore (in) | 2.5 |
| Opening Per Jaw (degrees) | 15 |
| Pressure Range (bar) | 3-7 |
| Pressure Range (psi) | 40-100 |
| Displacement (cm³) | 21.60 |
| Displacement (in³) | 1.320 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Actuation Time (Open) (Sec) | 0.23 |
| Actuation Time (close) (Sec) | 0.23 |
| Accuracy (±mm) | 0.130 |
| Accuracy (±in) | 0.005 |
| Repeatability (±mm) | 0.080 |
| Repeatability (±in) | 0.003 |
| Maximum Finger Length (mm) | 153 |
| Maximum Finger Length (in) | 6.00 |
| Protection Class | IP43 |
| Product Type | 2 Jaw Angular |
| Special Feature | Heavy Duty |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Weight (kg) | 2.10 |
| Weight (lb) | 4.60 |
| Product Series Description | 2-Jaw Angular Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Angular Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
