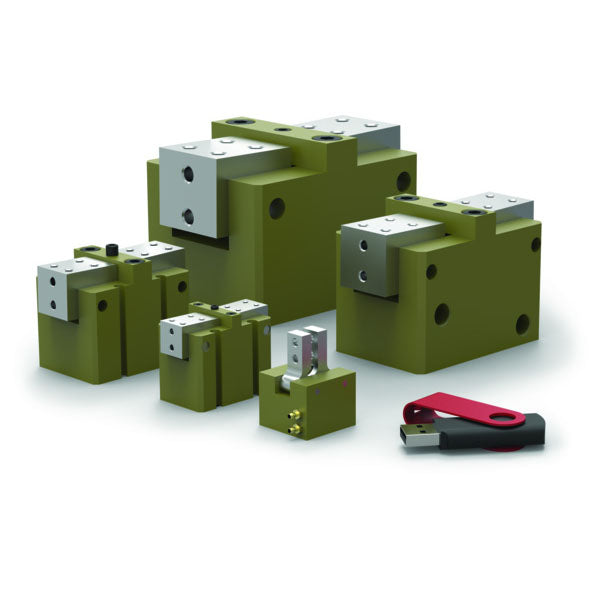

DESTACO RA-7M 2 JAW ANGULAR CAM DRIVEN GRIPPER
SKU: DE-STA-CO-RA-7M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO RA-7M 2 JAW ANGULAR CAM DRIVEN GRIPPER is an essential tool for any industry, known for its rugged design and powerful grip forces in a compact size. Its simplified drive mechanism makes it an excellent and valuable choice. With a maximum grip force of 534N (120lbsf) and an opening angle of 30 degrees, this gripper boasts a 44.4mm (1.75in) cylinder bore and a 15 degree opening per jaw. Don't miss out on the incredible capabilities of this gripping tool.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RA-7M 2 JAW ANGULAR CAM DRIVEN GRIPPER
This style 2 jaw angular gripper is the most widely used in the industry. The RA series offers a rugged design and supplies very high gripforces for its size. It''s simplified drive mechanism make these grippers an excellent value.
| Product | Metric |
| Grip Force (N) | 534 |
| Grip Force (lbsf) | 120 |
| Opening Angle (deg) | 30 |
| Cylinder Bore (mm) | 44.4 |
| Cylinder Bore (in) | 1.75 |
| Opening Per Jaw (degrees) | 15 |
| Pressure Range (bar) | 3-7 |
| Pressure Range (psi) | 40-100 |
| Displacement (cm³) | 9.80 |
| Displacement (in³) | 0.600 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Actuation Time (Open) (Sec) | 0.15 |
| Actuation Time (close) (Sec) | 0.15 |
| Accuracy (±mm) | 0.130 |
| Accuracy (±in) | 0.005 |
| Repeatability (±mm) | 0.080 |
| Repeatability (±in) | 0.003 |
| Maximum Finger Length (mm) | 102 |
| Maximum Finger Length (in) | 4.00 |
| Protection Class | IP43 |
| Product Type | 2 Jaw Angular |
| Special Feature | Heavy Duty |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Weight (kg) | 0.80 |
| Weight (lb) | 1.80 |
| Product Series Description | 2-Jaw Angular Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Angular Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
