Brand: DESTACO

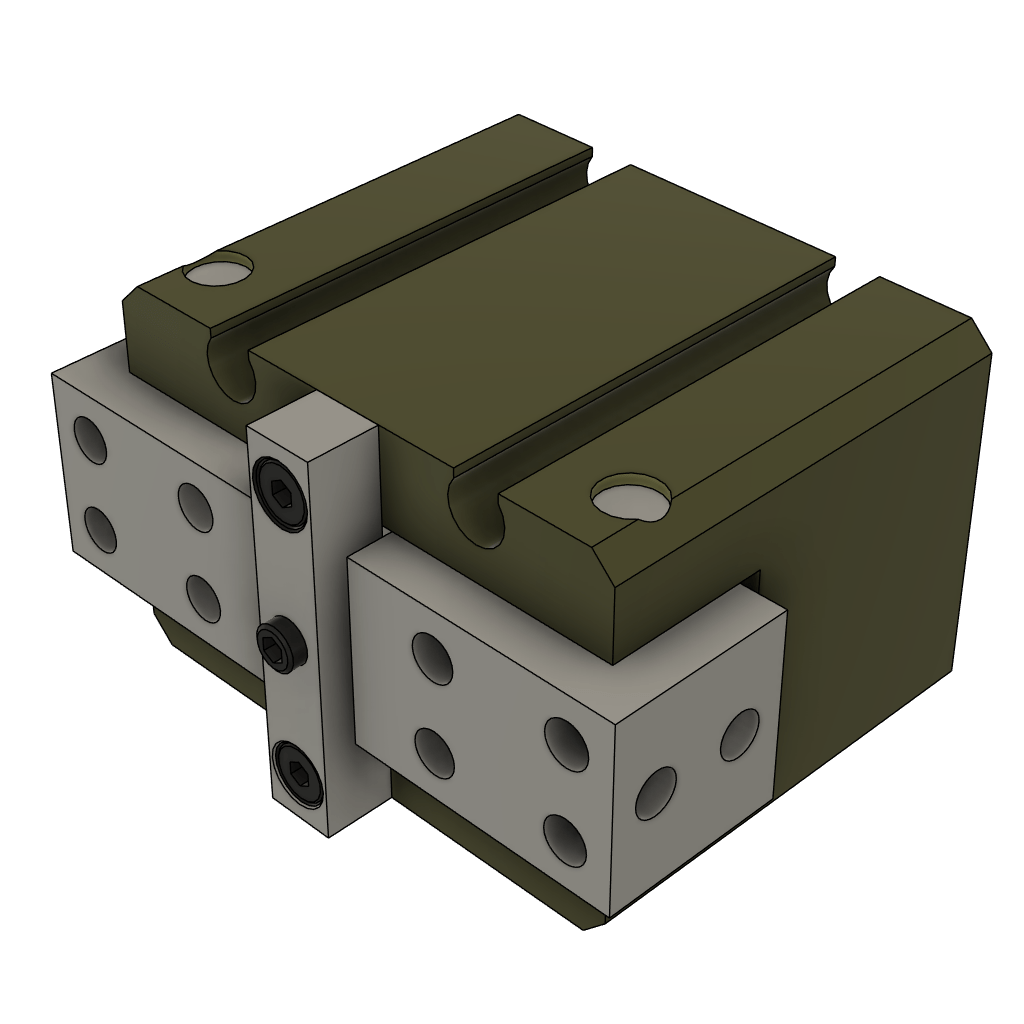

DESTACO RA-5 2 JAW ANGULAR CAM DRIVEN GRIPPER
SKU: DE-STA-CO-RA-5
MPN:
In-Stock: 4
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO RA-5 is a 2-jaw angular cam-driven gripper, widely favored in the industry for its reliable performance. Its rugged design delivers powerful grip forces relative to its size. Thanks to its simple drive mechanism, this gripper offers exceptional value without compromising durability or strength.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RA-5 2 JAW ANGULAR CAM DRIVEN GRIPPER
This style 2 jaw angular gripper is the most widely used in the industry. The RA series offers a rugged design and supplies very high gripforces for its size. It''s simplified drive mechanism make these grippers an excellent value.
- Inexpensive
- Adjustable stroke
- Rugged design
| Imperial or Metric Product | Imperial |
| Grip Force (N) | 89 |
| Grip Force (lbsf) | 20 |
| Opening Angle (deg) | 30 |
| Cylinder Bore (mm) | 20.6 |
| Cylinder Bore (in) | 0.813 |
| Opening Per Jaw (degrees) | 15 |
| Pressure Range (bar) | 3-7 |
| Pressure Range (psi) | 40-100 |
| Displacement (cm³) | 2.10 |
| Displacement (in³) | 0.130 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Actuation Time (Open) (Sec) | 0.10 |
| Actuation Time (close) (Sec) | 0.10 |
| Accuracy (±mm) | 0.130 |
| Accuracy (±in) | 0.005 |
| Repeatability (±mm) | 0.080 |
| Repeatability (±in) | 0.003 |
| Maximum Finger Length (mm) | 50 |
| Maximum Finger Length (in) | 2.00 |
| Protection Class | IP43 |
| Product Type | 2 Jaw Angular |
| Special Feature | Heavy Duty |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Weight (kg) | 0.11 |
| Weight (lb) | 0.25 |
| Product Series Description | 2-Jaw Angular Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Angular Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
