Brand: DESTACO

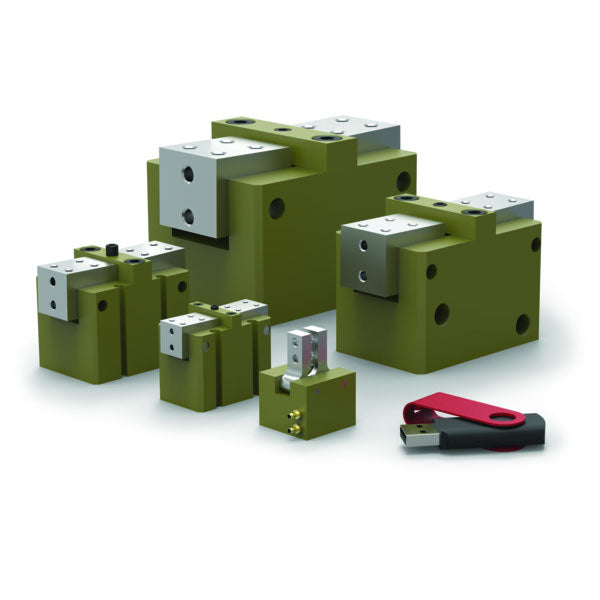

DESTACO RA-15 2 JAW ANGULAR CAM DRIVEN GRIPPER

SKU: DE-STA-CO-RA-15
MPN: RA-15

$789.37
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO RA-15 2 JAW ANGULAR CAM DRIVEN GRIPPER
Angular Grippers with Toggle Locking Mechanism - RA. 2 jaw toggle locking angular gripper uses the mechanical advantages of a toggle mechanism to create a very high gripforce at the completion of the stoke. At full close the gripper locks in such that it cannot release part unless air pressure is applied.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO RA-15 2 JAW ANGULAR CAM DRIVEN GRIPPER

2 jaw toggle locking angular gripper uses the mechanical advantages of a toggle mechanism to create a very high gripforce at the completion of the stoke. At full close the gripper locks in such that it cannot release part unless air pressure is applied.

Imperial or Metric Product	Imperial
Grip Force (N)	311
Grip Force (lbsf)	70
Opening Angle (deg)	12
Cylinder Bore (mm)	19.1
Cylinder Bore (in)	0.75
Opening Per Jaw (degrees)	6
Pressure Range (bar)	3-7
Pressure Range (psi)	40-100
Displacement (cm³)	18.00
Displacement (in³)	0.110
Temp Range Standard	-35° to 80°C (-30° to 180°F)
Temp Range Viton	-30° to 150°C (-20° to 300°F)
Actuation (Open/Closed) (Sec)	0
Actuation Time (Open) (Sec)	0.10
Actuation Time (close) (Sec)	0.10
Accuracy (±mm)	0.080
Accuracy (±in)	0.003
Repeatability (±mm)	0.030
Repeatability (±in)	0.001
Maximum Finger Length (mm)	50
Maximum Finger Length (in)	2.00
Protection Class	IP43
Product Type	2 Jaw Angular
Special Feature	Heavy Duty
Jaw Operation	Synchronous
Spring Assist	No
Weight (kg)	0.14
Weight (lb)	0.31
Product Series Description	2-Jaw Angular Gripper
Number of Jaws	2
Product Function	Gripping
Product Family	Grippers
Product Group	Angular Grippers
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
