Brand: DESTACO

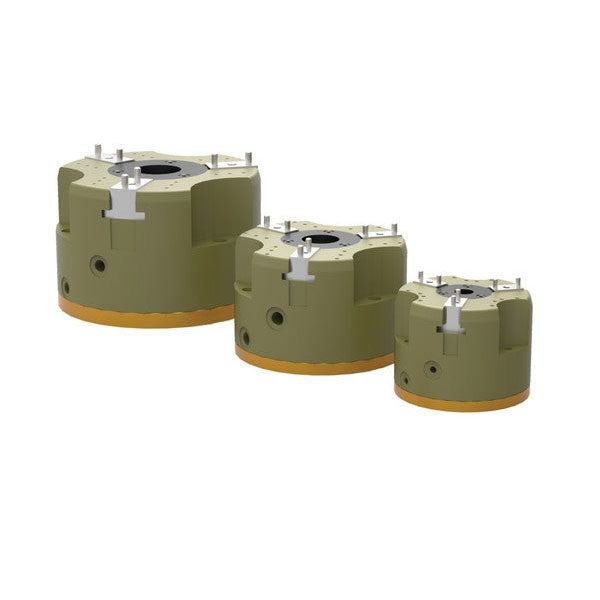

DESTACO PPC-34-C 3 JAW PARALLEL THROUGH HOLE GRIPPER
SKU: DE-STA-CO-PPC-34-C
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
This incredible DESTACO PPC-34-C 3 JAW PARALLEL THROUGH HOLE GRIPPER offers a range of three jaw options, including three models with two strokes each. With a total stroke between 10 and 30mm and a force range of 790 to 3870N, this gripper is perfect for industrial use. You can even add features such as spring safety (RE or RI), inductive sensing (SD), Viton (V) for high temperatures, or hydraulic (H) for added versatility. Plus, with a shielded case, this gripper is designed to protect the mechanism and provide reliable grip force of 638lbsf (2,838N) with a stroke of 1.181 inches (30mm). Don't wait any longer to upgrade your industrial operations with this powerful gripper!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO PPC-34-C 3 JAW PARALLEL THROUGH HOLE GRIPPER
Range of three jaws, through hole parallel grippers including 3 models with 2 strokes per model. Total stroke varying from 10 to 30mm and force varying from 790 to 3870N
- Options : spring safety (RE or RI), inductive sensing (SD), Viton (V) for high temperatures, hydraulic (H)
- Shielded case to protect the mechanism
- Designed for industrial use
| Product | Imperial |
| Grip Force (N) | 2,838 |
| Grip Force (lbsf) | 638 |
| Stroke (mm) | 30.0 |
| Stroke (in) | 1.181 |
| Cylinder Bore (mm) | 110 |
| Cylinder Bore (in) | 4.33 |
| Pressure Range Without Springs | 30-100 psi |
| Pressure Range With Springs | 45-100 psi |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Repeatability (±mm) | 0.020 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 120 |
| Maximum Finger Length (in) | 4.72 |
| Product Type | 3 Jaw Parallel |
| Special Feature | Center Thru Hole |
| Jaw Operation | Synchronous |
| Spring Assist | Optional |
| Stroke per Jaw (mm) | 15.00 |
| Stroke per Jaw (in) | 0.59 |
| Weight (kg) | 5.30 |
| Weight (lb) | 11.70 |
| Product Series Description | 3-Jaw Parallel Gripper |
| Number of Jaws | 3 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
