Brand: DESTACO

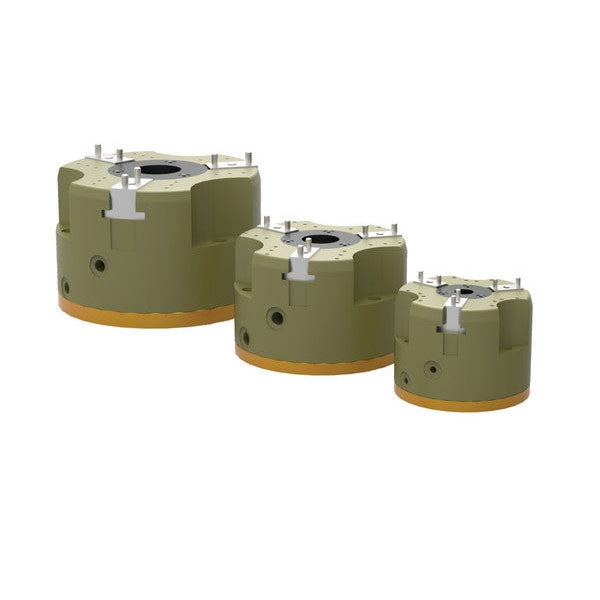

DESTACO ROBOHAND PPC-25-C 3 JAW PARALLEL THROUGH HOLE GRIPPER
SKU: DE-STA-CO-PPC-25-C
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Enhance your industrial use with the DESTACO PPC-25-C 3 JAW PARALLEL THROUGH HOLE GRIPPER! With a range of three jaw models offering two varying strokes per model, this gripper boasts a total stroke of 10-30mm and a force range of 790-3870N. Options include spring safety, inductive sensing, high temperature resistance, and hydraulic capabilities, all protected by a shielded case. Experience a gripping force of 1,642N (3,689lbsf) and a stroke of 20.0mm (0.790in) with a cylinder bore size of 85mm (3.35in). This grip is designed to exceed your expectations and enhance your industrial operations.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO PPC-25-C 3 JAW PARALLEL THROUGH HOLE GRIPPER
Range of three jaws, through hole parallel grippers including 3 models with 2 strokes per model. Total stroke varying from 10 to 30mm and force varying from 790 to 3870N
- Options : spring safety (RE or RI), inductive sensing (SD), Viton (V) for high temperatures, hydraulic (H)
- Shielded case to protect the mechanism
- Designed for industrial use
| Product | Imperial |
| Grip Force (N) | 1,642 |
| Grip Force (lbsf) | 3,689 |
| Stroke (mm) | 20.0 |
| Stroke (in) | 0.790 |
| Cylinder Bore (mm) | 85 |
| Cylinder Bore (in) | 3.35 |
| Pressure Range Without Springs | 30-100 psi |
| Pressure Range With Springs | 45-100 psi |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Repeatability (±mm) | 0.020 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 90 |
| Maximum Finger Length (in) | 3.54 |
| Product Type | 3 Jaw Parallel |
| Special Feature | Center Thru Hole |
| Jaw Operation | Synchronous |
| Spring Assist | Optional |
| Stroke per Jaw (mm) | 10.00 |
| Stroke per Jaw (in) | 0.40 |
| Weight (kg) | 2.30 |
| Weight (lb) | 5.10 |
| Product Series Description | 3-Jaw Parallel Gripper |
| Number of Jaws | 3 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
