Brand: DESTACO

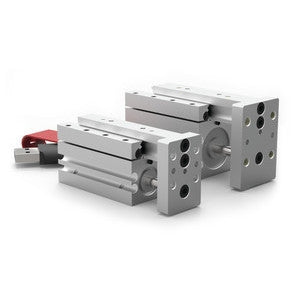

DESTACO MPS-1M-4 MPS MINIATURE SLIDE
SKU: DE-STA-CO-MPS-1M-4
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the incredible power and precision of the DESTACO MPS-1M-4 MPS MINIATURE SLIDE, featuring a built-in air cylinder and preloaded Dual "V" roller bearings that eliminate side play. With a remarkably small size and impressive force, this product offers unbeatable part position repeatability and a metric version for even more convenience. Whether you're working with a payload of 0.6kg or 1.3lbs, this slide delivers a thrust force of 67N or 15lbsf, and a maximum stroke of 2.00 inches. With a cylinder bore of 11.1mm and a pressure range of 20-100psi, this slide is the perfect addition to any precision project.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO MPS-1M-4 MPS MINIATURE SLIDE
- Built-in air cylinder
- Preloaded Dual "V"DESTACO MPS-1M-4 MPS MINIATURE SLIDE" roller bearings eliminate side play for excellent part position repeatability"
- Extremely small size
| Product | Metric Version |
| Force (kg) | 67 |
| Force (lb) | 15 |
| Stroke (mm) | 51.0 |
| Stroke (in) | 2.000 |
| Payload (kg) | 0.6 |
| Payload (lb) | 1.3 |
| Cylinder Bore (mm) | 11.1 |
| Cylinder Bore (in) | .438 |
| Thrust Force (N) | 67 |
| Thrust Force (lbsf) | 15 |
| Power Max (Watts) | 51 |
| Max Stroke (in) | 2.00 |
| Pressure Range (bar) | 20-100 psi |
| Temp Range Standard | -35‚° to 80‚°C (-30‚° to 180‚°F) |
| Temp Range Viton | -30‚° to 120‚°C (-20‚° to 250‚°F) |
| Actuation Time per 25 mm (1.00") of travel (sec) (Sec) | 0.14 |
| Linear Accuracy per 25 mm travel (‚±mm) | 0.003 |
| Linear Accuracy per 1" travel (‚±in) | 0.001 |
| Direct Connect | Yes |
| Special Feature | Zero Side Play |
| Weight (kg) | 0.14 |
| Weight (lb) | 0.32 |
| Product Series Description | Rail |
| Product Function | Linear Positioning |
| Product Family | Thrusters / Slides |
| Product Group | ball rail slides |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
