Brand: DESTACO

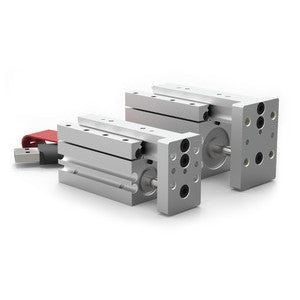

DESTACO MPS-1M-3 MPS MINIATURE SLIDE
SKU: DE-STA-CO-MPS-1M-3
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the limitless possibilities of DESTACO MPS-1M-3 MPS MINIATURE SLIDE. This product, preloaded with dual "V" roller bearings, offers precise and reliable part positioning and repeatability. With an incredibly compact size, and a metric version, it is capable of a force of 67 kg (15 lb) and has a stroke of 38.0 mm (1.500 in). The payload capacity is 0.5 kg (1.0 lb), while the cylinder bore measures 11.1 mm (.438 in). With a thrust force of 67 N (15 lbsf) and a maximum power of 38 watts, this miniature slide is perfect for a wide range of applications. The stroke can reach a maximum of 1.50 inches and the pressure range is between 20-100 psi. Don't miss out on this incredible product!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO MPS-1M-3 MPS MINIATURE SLIDE
- Built-in air cylinder
- Preloaded Dual "V"DESTACO MPS-1M-3 MPS MINIATURE SLIDE" roller bearings eliminate side play for excellent part position repeatability"
- Extremely small size
| Product | Metric Version |
| Force (kg) | 67 |
| Force (lb) | 15 |
| Stroke (mm) | 38.0 |
| Stroke (in) | 1.500 |
| Payload (kg) | 0.5 |
| Payload (lb) | 1.0 |
| Cylinder Bore (mm) | 11.1 |
| Cylinder Bore (in) | .438 |
| Thrust Force (N) | 67 |
| Thrust Force (lbsf) | 15 |
| Power Max (Watts) | 38 |
| Max Stroke (in) | 1.50 |
| Pressure Range (bar) | 20-100 psi |
| Temp Range Standard | -35‚° to 80‚°C (-30‚° to 180‚°F) |
| Temp Range Viton | -30‚° to 120‚°C (-20‚° to 250‚°F) |
| Actuation Time per 25 mm (1.00") of travel (sec) (Sec) | 0.13 |
| Linear Accuracy per 25 mm travel (‚±mm) | 0.003 |
| Linear Accuracy per 1" travel (‚±in) | 0.001 |
| Direct Connect | Yes |
| Special Feature | Zero Side Play |
| Weight (kg) | 0.13 |
| Weight (lb) | 0.28 |
| Product Series Description | Rail |
| Product Function | Linear Positioning |
| Product Family | Thrusters / Slides |
| Product Group | ball rail slides |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
