Brand: DESTACO

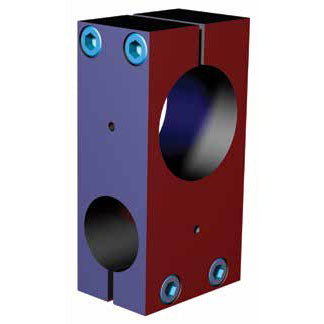

DESTACO M-40M-60M-M CROSS CLAMP 40M X 60M - METRIC
SKU: DE-STA-CO-M-40M-60M-M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the power of DESTACO M-40M-60M-M CROSS CLAMP, the ultimate solution for high-performance automation, workholding, and containment. This double bolt clamp block allows for secure attachment of 60 mm tubes to 40 mm tubes, with a maximum static clamp load of 813.0 Nm (or 600 ft lbs). Designed with durable and lightweight aluminum material, this clamp block is finished in a striking blue color that will enhance any workspace. Trust in DESTACO for top-of-the-line products like this clamp block for 40 mm and 60 mm tubes.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO M-40M-60M-M CROSS CLAMP 40M X 60M - METRIC
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Double Bolt Clamp Block for 60 mm tube to 40 mm tube
| Tube Diameter (mm) | 40, 60 |
| Tube Diameter (in) | 1.57, 2.36 |
| Material | Aluminum |
| Max Static Clamp Load 1 (Nm) | 813.0 |
| Max Static Clamp Load 1 (ft lb) | 600 |
| Max Static Clamp Load 2 (Nm) | 624.0 |
| Max Static Clamp Load 2 (ft lb) | 460 |
| Finish | Blue |
| Product Type | Clamp Block |
| Tube Size | 40 mm / 60 mm |
| Weight (kg) | 0.95 |
| Weight (lb) | 2.08 |
| Product Series Description | Transition Brackets and Block |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
| Tube Combinations (mm) | 40 / 60 |
| Tube Combinations (in) | 1.57 / 2.36 |
