Brand: DESTACO
DESTACO M-15E-25E-M CROSS CLAMP 15E X 25E - ENGLISH
SKU: DE-STA-CO-M-15E-25E-M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the power and precision of DESTACO M-15E-25E-M CROSS CLAMP 15E X 25E - ENGLISH. Elevate your automation, workholding, and containment capabilities with our high-performance solutions. Featuring a double bolt clamp block that easily secures 2.50" to 1.50" tubes, this catalog showcases our commitment to quality and innovation. With a maximum static clamp load of 813.0 Nm (600 ft lb) and a sleek black finish, this product is perfect for your needs. Upgrade to the best - get DESTACO.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description

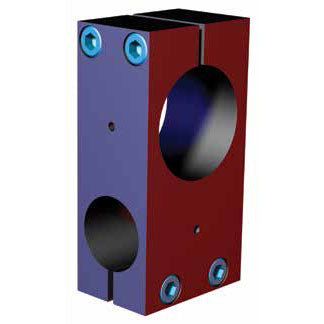

DESTACO M-15E-25E-M CROSS CLAMP 15E X 25E - ENGLISH
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Double Bolt Clamp Block for 2.50" tube to 1.50" tube
| Tube Diameter (mm) | 38.1, 63.5 |
| Tube Diameter (in) | 1.50, 2.50 |
| Material | Aluminum |
| Max Static Clamp Load 1 (Nm) | 813.0 |
| Max Static Clamp Load 1 (ft lb) | 600 |
| Max Static Clamp Load 2 (Nm) | 624.0 |
| Max Static Clamp Load 2 (ft lb) | 460 |
| Finish | Black |
| Product Type | Clamp Block |
| Tube Size | 1.50 in / 2.50 in |
| Weight (kg) | 0.95 |
| Weight (lb) | 2.08 |
| Product Series Description | Transition Brackets and Block |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
| Tube Combinations (mm) | 38.1 / 63.5 |
| Tube Combinations (in) | 1.50 / 2.50 |
