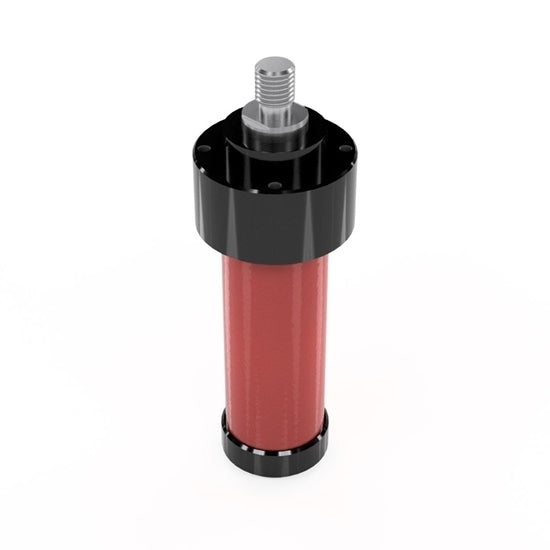

DESTACO K400-70-6-A PNEUMATIC POWER CYLINDER
SKU: DE-STA-CO-K400-70-6-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO K400-70-6-A PNEUMATIC POWER CYLINDER is a powerful addition to any machine, tool, or device. With a 10:1 mechanical advantage thanks to the innovative wedge lever principle, this unit offers precise control over the two steps of its stroke - a forward stroke for longer distances, and a power stroke for amplified force in a shorter distance. The piston rod also features a male thread for added versatility. The cylinder can be easily mounted on a flange for exact positioning and works reliably in any position. Thanks to its solid, maintenance-free wedge lever mechanics, this cylinder is built to last. Plus, magnetic field sensing allows for precise end position control.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO K400-70-6-A PNEUMATIC POWER CYLINDER
Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (4 kN). Piston rod with male thread.
- 10:1 mechanical advantage
- Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
- Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
- The cylinder works in any position
- High durability because of solid and maintenance-free wedge lever mechanics.
- End position control by magnetic field sensing
Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.
| Max. Clamping Force (lbsf) | 899 |
| Forward Stroke (in) | 2.760 |
| Cylinder Bore (in) | 1.75 |
| Power Stroke (in) | 0.236 |
| Temperature Range | -5 to 75°C (23 to 167°F) |
| Product Type | Piston Rod with External Thread |
| Piston force within forwarding stroke at 6 bar (lbf) | 153 |
| Air Consumption per double stroke at 6 bar (ft³) | 1.380 |
| Air Consumption per double stroke at 87 psi (ft³) | 0.05 |
| Stroke Frequency depending on total stroke (per minute) | 5 to 30 |
| End position control by magnetic field sensors | Yes |
| Weight (lb) | 3.00 |
| Product Series Description | Power Cylinder |
| Product Function | Clamping |
| Product Family | Heavy-Duty Pneumatic Clamping |
| Product Group | pneumatic power cylinder |
