Brand: DESTACO

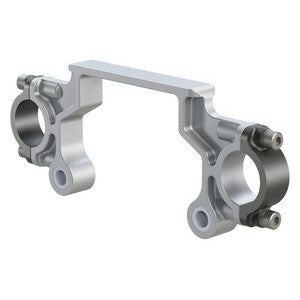

DESTACO GRS-SD-40-NA-A 40mm CROSSBAR SADDLE WITH AIR (IDLE)
SKU: DE-STA-CO-GRS-SD-40-NA-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO GRS-SD-40-NA-A 40mm CROSSBAR SADDLE WITH AIR (IDLE)GRS Crossbar Saddles, typically used outside the USA, are compatible with 100mm square crossbar rails and are designed with standard automatic air connection. Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO GRS-SD-40-NA-A 40mm CROSSBAR SADDLE WITH AIR (IDLE)
GRS Crossbar Saddles, typically used outside the USA, are compatible with 100mm square crossbar rails and are designed with standard automatic air connection. Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Machined aircraft aluminum with removable 40mm clamp caps
- Available with four port air connections
- Left hand and right hand versions standard
Tube Diameter (mm) | 40 |
Tube Diameter (in) | 1.57 |
Material | High Strength Aluminum |
Max Static Clamp Load 1 (Nm) | 295.0 |
Max Static Clamp Load 1 (ft lb) | 218 |
Maximum Static Clamp Load (Nm) | 400 |
Maximum Static Clamp Load (ft lb) | 295 |
Product Type | Crossbar Saddle |
Tube Size | 40 mm |
Weight (kg) | 0.54 |
Weight (lb) | 1.18 |
Product Series Description | Sheet Metal Gripper |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | lightweight tooling |
