Brand: DESTACO

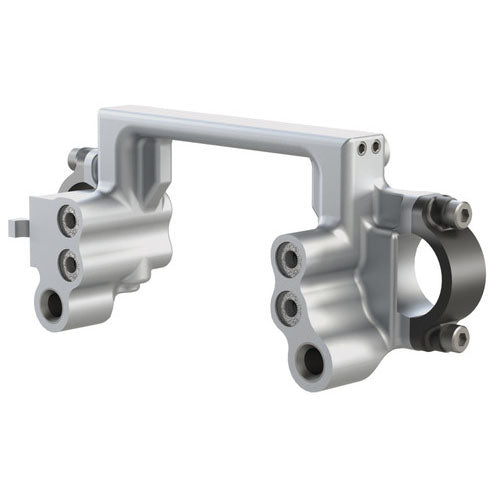

DESTACO GRS-SD-40-LHS-A 40mm CROSSBAR SADDLE WITH AIR (LEFT HAND)
SKU: DE-STA-CO-GRS-SD-40-LHS-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The GRS Crossbar Saddle from DESTACO (model GRS-SD-40-LHS-A) is a high-performance addition to any automation, workholding, or containment solution. Made of durable, lightweight aircraft aluminum, this crossbar saddle features removable 40 mm clamp caps and a standard automatic air connection, making it compatible with 100mm square crossbar rails. With its four port air connections and left-hand orientation, this saddle is a must-have for any project.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO GRS-SD-40-LHS-A 40mm CROSSBAR SADDLE WITH AIR (LEFT HAND)
GRS Crossbar Saddles, typically used outside the USA, are compatible with 100mm square crossbar rails and are designed with standard automatic air connection. Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Machined aircraft aluminum with removable 40 mm clamp caps
- Available with four port air connections
- Left hand (standard)
| Tube Diameter (mm) | 40 |
| Tube Diameter (in) | 1.57 |
| Material | High Strength Aluminum |
| Max Static Clamp Load 1 (Nm) | 295.0 |
| Max Static Clamp Load 1 (ft lb) | 218 |
| Maximum Static Clamp Load (Nm) | 400 |
| Maximum Static Clamp Load (ft lb) | 295 |
| Product Type | Crossbar Saddle |
| Tube Size | 40 mm |
| Weight (kg) | 0.94 |
| Weight (lb) | 2.06 |
| Product Series Description | Sheet Metal Gripper |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | lightweight tooling |
