Brand: DESTACO

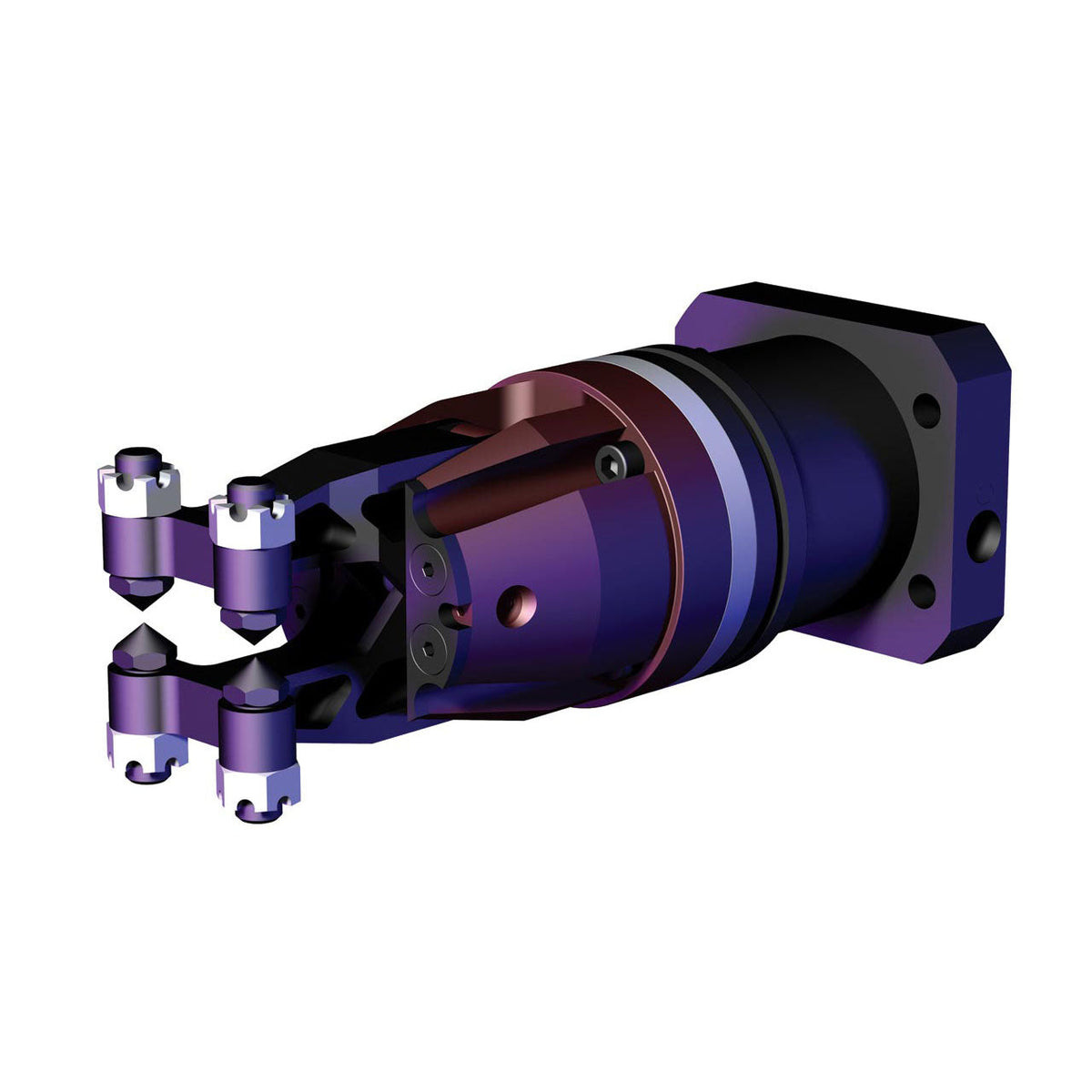

Destaco GR1-15BE-9DJ-DSS-MXX-T04 - GR1 Series Modular Gripper
SKU: DE-STA-CO-GR1-15BE-9DJ-DSS-MXX-T04
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the versatility and customization of Destaco's GR1 Series Modular Gripper. With a variety of jaw openings and point options, two cylinder sizes, and the ability to configure porting and sensors, this gripper is truly adaptable to your specific needs. Don't miss out on the opportunity to enhance your manufacturing process with the GR1-15BE-9DJ-DSS-MXX-T04 model, featuring an English (1/8 NPT) flange base cylinder.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Destaco GR1-15BE-9DJ-DSS-MXX-T04 - GR1 Series Modular Gripper
MODULAR SHEET METAL GRIPPERS WITH CONFIGURABLE PORTING & SENSORS – GR1 SERIES
This modular sheet metal gripper is offered with several jaw opening and point options and two cylinder sizes. You also have the option to configure your model’s porting, open/closed sensor, and part present sensor.
| Specifications | |
| Part Number | GR1-15BE-9DJ-DSS-MXX-T04 |
| Cylinder Type | B - Flange Base |
| Cylinder Ports | E - English (1/8 NPT) |
| Jaw Arrangement | 9DJ - 90° Drop Jaw |
| Tips or Block | Points & Tip Insert |
| Point Tip Options | D - Double Point |
| Upper Tip Insert Options | S - Serrated |
| Lower Tip Options | S - Serrated |
| Mount Options - Mount Type | X - No Mount |
| Mount Options - Mount Ball/Rod Size | X - No Mount |
| Open/Closed Sensor | T04 - Internal Sensor |
| Sensor Position | Standard |
