Brand: DESTACO

DESTACO GC-85 2 JAW PRECISION SPRING SERIES PARALLEL GRIPPER

SKU: DE-STA-CO-GC-85
MPN: GC-85

$3,178.55
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the power and precision of the DESTACO GC-85 2 JAW PRECISION SPRING SERIES PARALLEL GRIPPER. This gripper is perfect for confined spaces, offering a long stroke and impressive grip force. With a standard spring to retain components during air failure, and an inductive sensor holder included, this product is truly invaluable. Imperial units are used, with a grip force of 1,480 N (333 lbsf), a stroke of 50.0 mm (1.968 in), and a cylinder bore of 60 mm (2.36 in). The pressure range is 1.5-7 bar (20-100 psi), making it suitable for a variety of applications. Upgrade your gripping abilities with the DESTACO GC-85!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO GC-85 2 JAW PRECISION SPRING SERIES PARALLEL GRIPPER

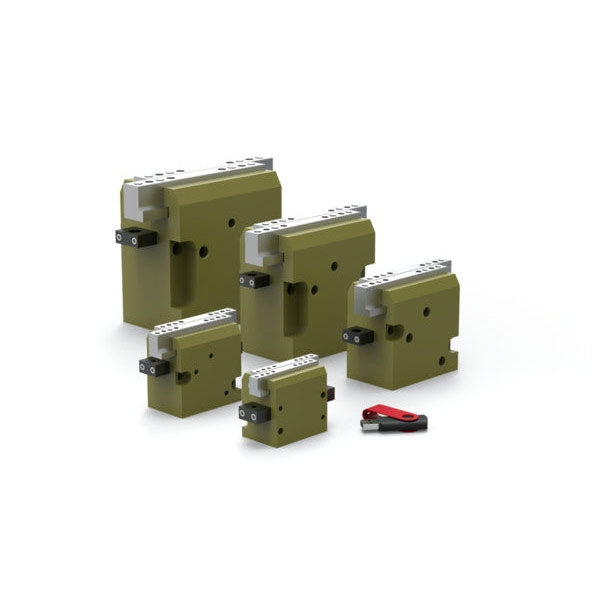

Range of two jaws parallel long stroke grippers with spring assist. Five models available. Total stroke varying from 20 to 60mm and force varying from 106Lbs[406N] to 521Lbs[2318N].

This compact gripper is used in confined spaces, combining long stroke with a high grip force
Standard spring allow the gripper to retain component in case of air failure
Inductive sensor holder mounted as standard

Product	Imperial
Grip Force (N)	1,480
Grip Force (lbsf)	333
Stroke (mm)	50.0
Stroke (in)	1.968
Cylinder Bore (mm)	60
Cylinder Bore (in)	2.36
Pressure Range (bar)	1.5-7
Pressure Range (psi)	20-100
Temp Range Standard	-35‚° to 80‚°C (-30‚° to 180‚°F)
Temp Range Viton	-30‚° to 150‚°C (-20‚° to 300‚°F)
Actuation (Open/Closed) (Sec)	1
Accuracy (‚±mm)	0.020
Repeatability (‚±mm)	0.010
Repeatability (‚±in)	0.001
Maximum Finger Length (mm)	178
Maximum Finger Length (in)	7.00
Product Type	2 Jaw Parallel
Special Feature	Precision
Spring Assist	Yes
Weight (kg)	2.20
Weight (lb)	4.85
Product Series Description	2-Jaw Parallel Gripper
Number of Jaws	2
Product Function	Gripping
Product Family	Grippers
Product Group	Parallel Grippers
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
