Brand: DESTACO

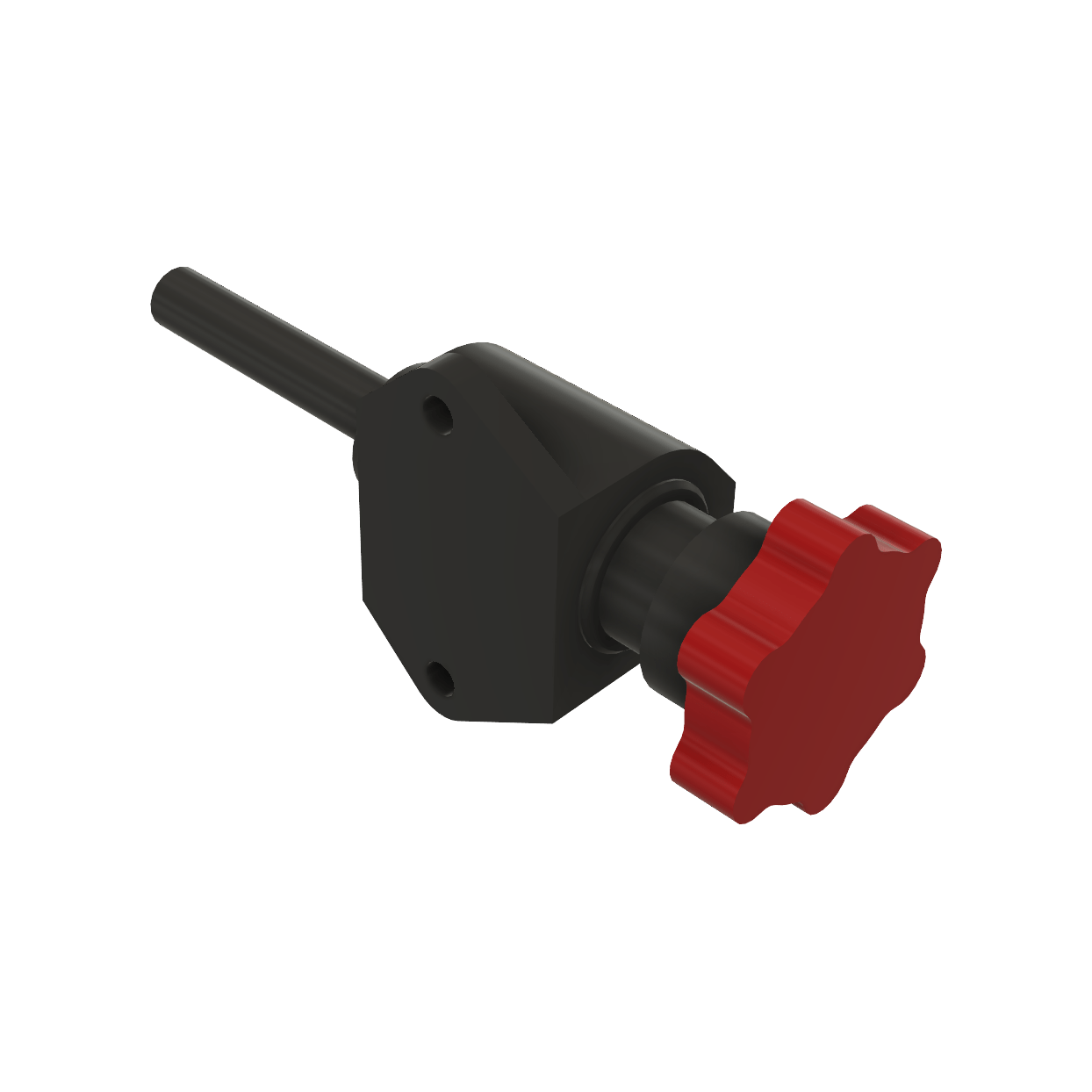

DESTACO FO-122-45 - VARIABLE STROKE STRAIGHT LINE ACTION CLAMP

SKU: DE-STA-CO-FO-122-45
MPN: FO-122/45

$354.04
Unit price per
Save $23.07

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO FO-122-45 - VARIABLE STROKE STRAIGHT LINE ACTION CLAMP

Discover the incredible DESTACO FO-122-45 - VARIABLE STROKE STRAIGHT LINE ACTION CLAMP! Embrace the versatility and power of a plunger clamp with a 600 lb capacity, fixed stroke of 45 mm, and maximum holding capacity of 3,000 N. With a one-hand/hand wheel operating method and 100 N clamping force, it's easy to operate and delivers fast results.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO FO-122-45 - VARIABLE STROKE STRAIGHT LINE ACTION CLAMP

Product Details

Variable stroke plunger clamp with foot mount body

600 lb. Capacity
Fixed plunger stroke of 45 mm
3 mm clamping stroke

Maxmum Holding Capacity (N)	3,000
Maximum Holding Capacity (lbsf)	675
Plunger Travel (mm)	45.0
Plunger Travel (in)	1.770
Plunger Height (mm)	20.0
Plunger Height (in)	0.790
Operating Method	One-Hand/Hand Wheel
Clamping Force With (N)	100
Operating Force (N)	450
Rapid Stroke (mm)	40
Max Clamping Stroke (mm)	3.0
Base Mounting Style	Foot
Order Plunger Separately?	No
Weight (kg)	0.61
Weight (lb)	1.34
Product Series Description	Variable Stroke Straight Line Action Clamp (Rako)
