Brand: DESTACO

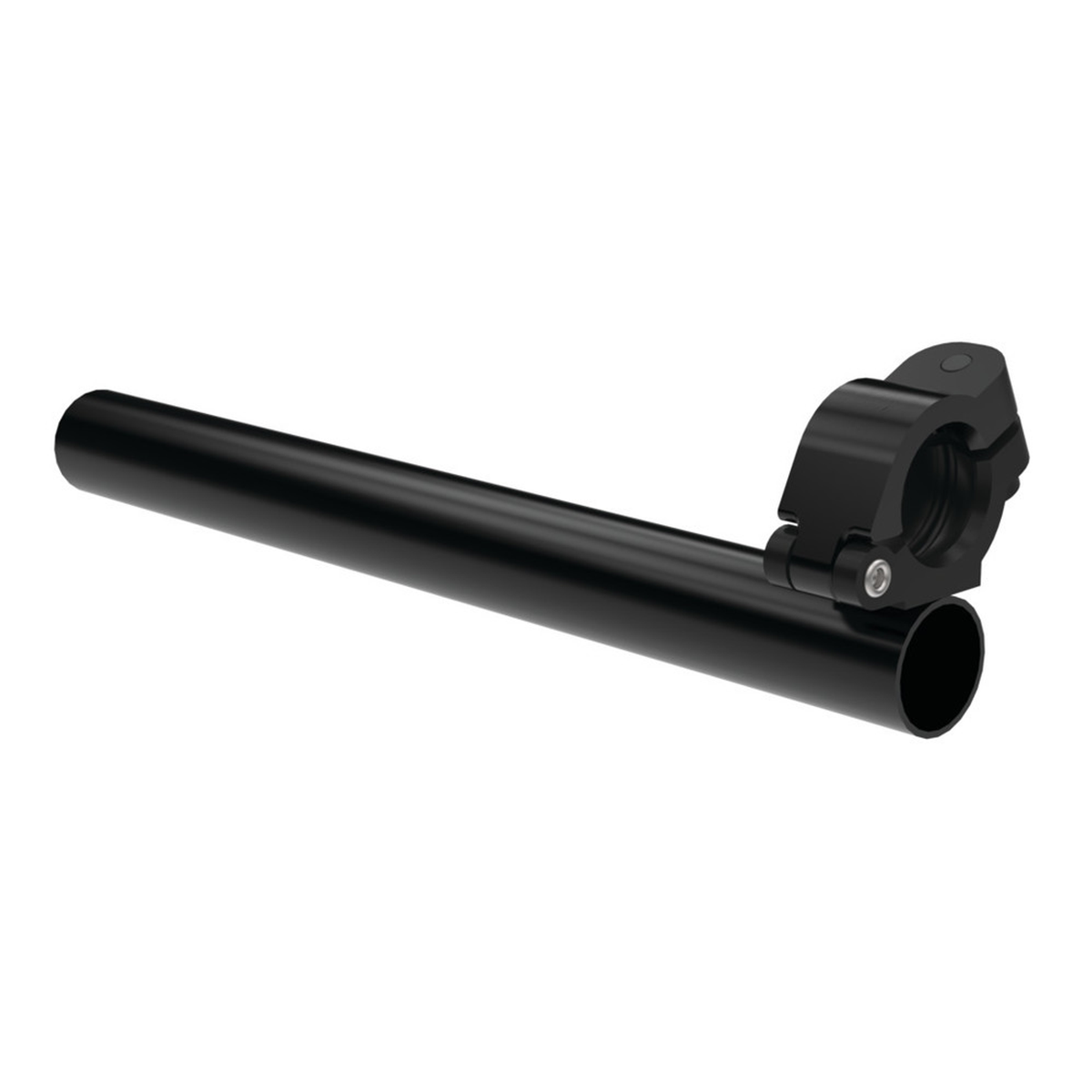

DESTACO ESS-32B-30M-90-300-S Lightweight Single End Extension 32 mm Ball, 90 Degrees X 30 mm Tube X 300 mm Long, Steel
SKU: DE-STA-CO-ESS-32B-30M-90-300-S
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
The DESTACO ESS-32B-30M-90-300-S Lightweight Single End Extension 32 mm Ball, 90 Degrees X 30 mm Tube X 300 mm Long, Steel extends the reach between connected tooling components. It is made from steel. Key specifications include tube size: 30 mm, length (in): 11.81, maximum static clamp load (ft lb): 111. This model belongs to DESTACO’s Accelerate Lightweight Tooling family and Lightweight Tooling-Single-End Extension product group. Review the specifications below when selecting components for your tooling layout.
Product Specifications
| Brand | DESTACO |
|---|---|
| Part Number | ESS-32B-30M-90-300-S |
| Product Family | Accelerate Lightweight Tooling |
| Product Group | Lightweight Tooling-Single-End Extension |
| Product Type | LWT Ball End Extension |
| Length (in) | 11.81 |
| Weight (lb) | 1.14 |
| Length (mm) | 300 |
| Weight (kg) | 0.52 |
| Apple Core Size | 32B |
| Tube Size | 30 mm |
| Maximum Static Clamp Load (ft lb) | 111 |
| Maximum Static Clamp Load (Nm) | 150 |
| Tube Diameter (mm) | 30 |
| Material | Steel |
