Brand: DESTACO

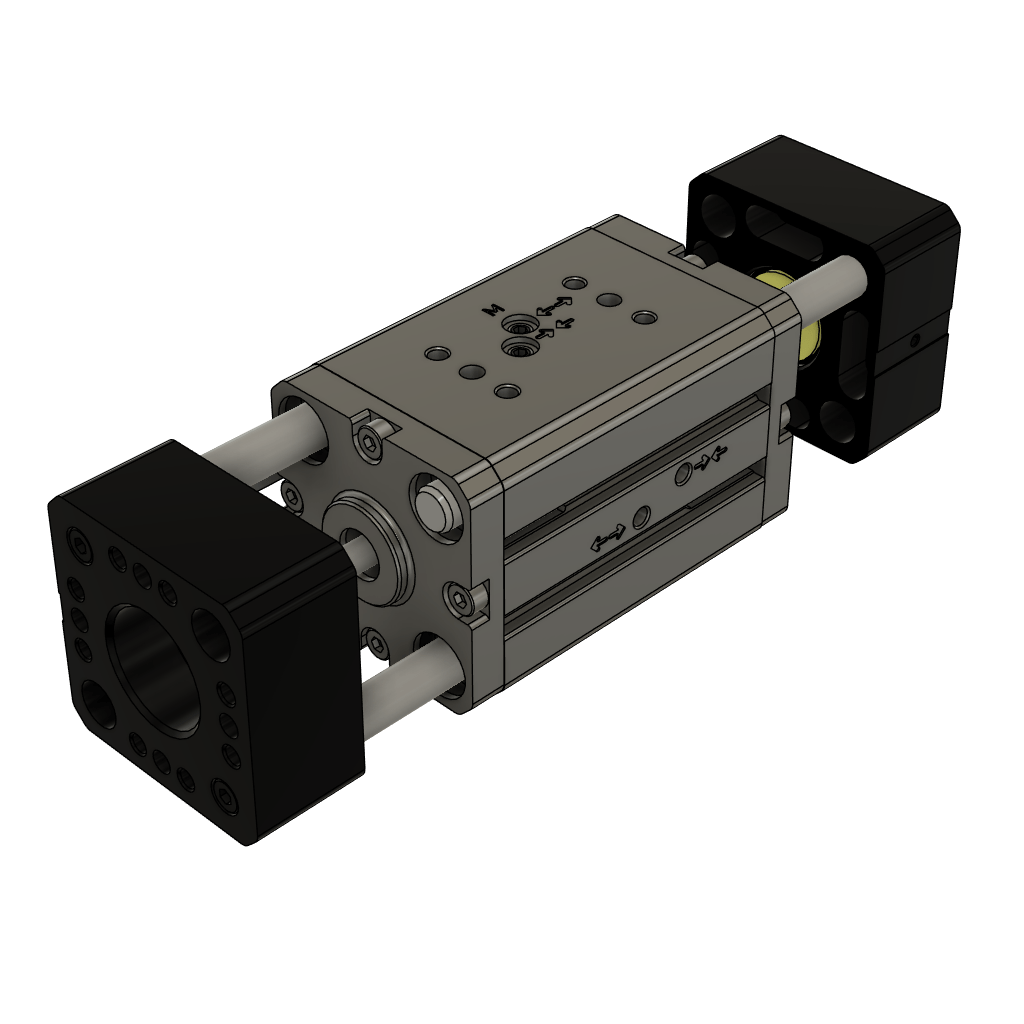

DESTACO ROBOHAND DPW-375M-2 2 JAW WIDE BODY PARALLEL GRIPPER
SKU: DE-STA-CO-DPW-375M-2
MPN:
In-Stock: 4
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Designed with both durability and versatility in mind, the DESTACO DPW-375M-2 2 JAW WIDE BODY PARALLEL GRIPPER is perfect for handling large and wide parts that require long finger designs. Its rack and pinion synchronizer ensures a long lifespan while its various features, such as the option for up to 4 position sensing and a Urethane Shaft Wiper for harsh environments, make it a must-have tool. Plus, with a stainless steel support shaft and a Product Metric Grip Force of 445N (100lbsf), this gripper is sure to impress.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPW-375M-2 2 JAW WIDE BODY PARALLEL GRIPPER
The DPW is a rugged design for handling large and/or wide parts that require long finger designs. With its rack and pinion synchronizer, it guarantees a long life operation. The DPW was designed with flexibility in mind, with its many features that inclu
- Up to 4 position sensing available.
- Urethane Shaft Wiper Option for harsh environments
- Stainless Steel Support Shafts
| Product | Metric |
| Grip Force (N) | 445 |
| Grip Force (lbsf) | 100 |
| Stroke (mm) | 50.8 |
| Stroke (in) | 2.000 |
| Cylinder Bore (mm) | 23.8 |
| Cylinder Bore (in) | 0.937 |
| Pressure Range (bar) | 1.5-7 |
| Pressure Range (psi) | 20-100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.080 |
| Accuracy (±in) | 0.003 |
| Repeatability (±mm) | 0.030 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 178 |
| Maximum Finger Length (in) | 7.00 |
| Protection Class | IP66 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Special Feature | Heavy Duty |
| Jaw Operation | Non-Synchronous Available |
| Spring Assist | No |
| Weight (kg) | 1.20 |
| Weight (lb) | 2.66 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
