Brand: DESTACO

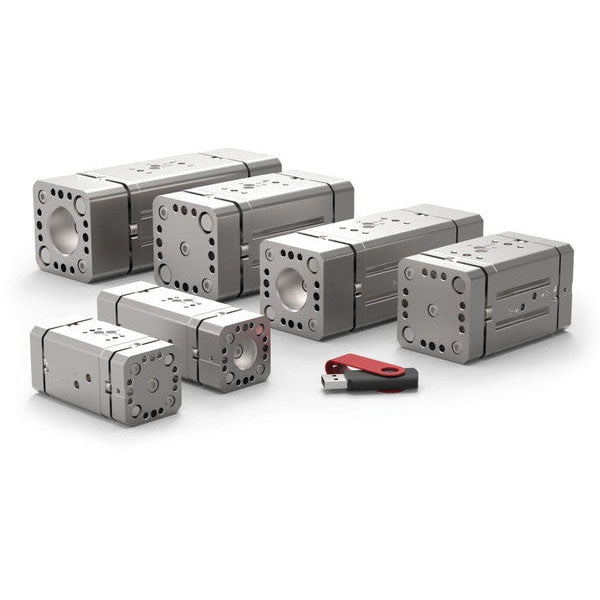

DESTACO DPW-250M-2 2 JAW WIDE BODY PARALLEL GRIPPER
SKU: DE-STA-CO-DPW-250M-2
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO DPW-250M-2 2 JAW WIDE BODY PARALLEL GRIPPER boasts a sturdy design, perfect for handling larger and wider parts with its extended finger capabilities. Its durable rack and pinion synchronizer ensures long-lasting operation, while its flexible design includes a range of convenient features. This includes the option for up to 4 position sensing, a urethane shaft wiper for harsh environments, and stainless steel support shafts. With a maximum grip force of 222 N (50 lbsf) and a 31.8 mm (1.250 in) stroke, this gripper is a must-have for any industrial setting.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPW-250M-2 2 JAW WIDE BODY PARALLEL GRIPPER
The DPW is a rugged design for handling large and/or wide parts that require long finger designs. With its rack and pinion synchronizer, it guarantees a long life operation. The DPW was designed with flexibility in mind, with its many features that inclu
- Up to 4 position sensing available.
- Urethane Shaft Wiper Option for harsh environments
- Stainless Steel Support Shafts
| Product | Metric |
| Grip Force (N) | 222 |
| Grip Force (lbsf) | 50 |
| Stroke (mm) | 31.8 |
| Stroke (in) | 1.250 |
| Cylinder Bore (mm) | 15.9 |
| Cylinder Bore (in) | 0.625 |
| Pressure Range (bar) | 1.5-7 |
| Pressure Range (psi) | 20-100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.080 |
| Accuracy (±in) | 0.003 |
| Repeatability (±mm) | 0.030 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 127 |
| Maximum Finger Length (in) | 5.00 |
| Protection Class | IP66 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Special Feature | Heavy Duty |
| Jaw Operation | Non-Synchronous Available |
| Spring Assist | No |
| Weight (kg) | 0.39 |
| Weight (lb) | 0.86 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
