Brand: DESTACO

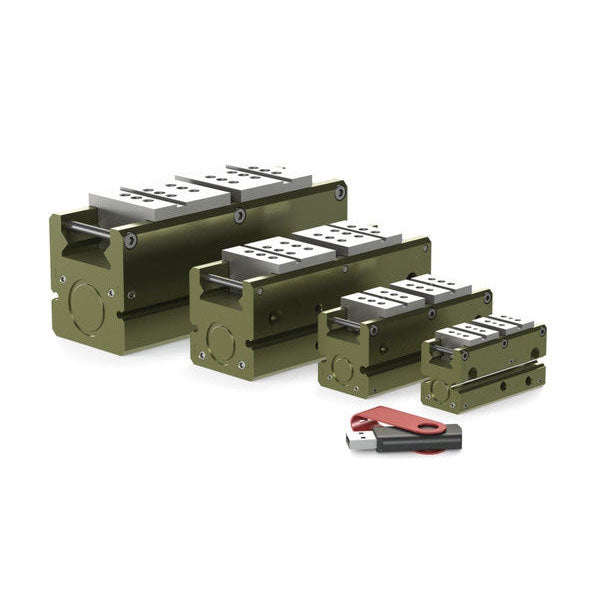

DESTACO DPP-28M-31 2 JAW PARALLEL GRIPPER
SKU: DE-STA-CO-DPP-28M-31
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
With the DESTACO DPP-28M-31 2 JAW PARALLEL GRIPPER, precision and functionality come standard. Our patented Dual-V roller bearing design offers superb repeatability and low friction, while the multiple mounting surfaces, air port locations, and spring features provide versatility and convenience. This gripper also boasts the exclusive DIRECTCONNECT Mounting, as well as our patented Dual V Roller Bearing Support for exceptional accuracy and repeatability. With a metric grip force of 845N and 0lbsf, and a stroke of 31.8mm (1.500in), this gripper is a powerful and reliable tool for any industrial setting.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPP-28M-31 2 JAW PARALLEL GRIPPER
DIRECTCONNECT Precision 2 jaw parallel gripper features our patented Dual-V roller bearing design for low friction and excellent part position repeatability with multiple mounting surfaces & air port locations, thru mounting, purge/vacuum port, and spring
- Features DIRECTCONNECT Mounting
- Patented Dual V Roller Bearing Support
- Excellent accuracy and repeatability
| Product | Metric |
| Grip Force (N) | 845 |
| Grip Force (lbsf) | 0 |
| Stroke (mm) | 31.8 |
| Stroke (in) | 1.500 |
| Cylinder Bore (mm) | 28.6 |
| Cylinder Bore (in) | 1.12 |
| Pressure Range Without Springs | 5-100 psi |
| Pressure Range With Springs | 30-100 psi |
| Temp Range Standard | -35‚° to 80‚°C (-30‚° to 180‚°F) |
| Temp Range Viton | -30‚° to 120‚°C (-20‚° to 250‚°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (‚±mm) | 0.030 |
| Repeatability (‚±mm) | 0.010 |
| Repeatability (‚±in) | 0.001 |
| Maximum Finger Length (mm) | 178 |
| Maximum Finger Length (in) | 7.00 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Jaw Operation | Non-Synchronous Available |
| Spring Assist | Optional |
| Weight (kg) | 2.06 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
