Brand: DESTACO
DESTACO DPP-10M-12 2 JAW PRECISION PARALLEL GRIPPER
SKU: DE-STA-CO-DPP-10M-12
MPN:

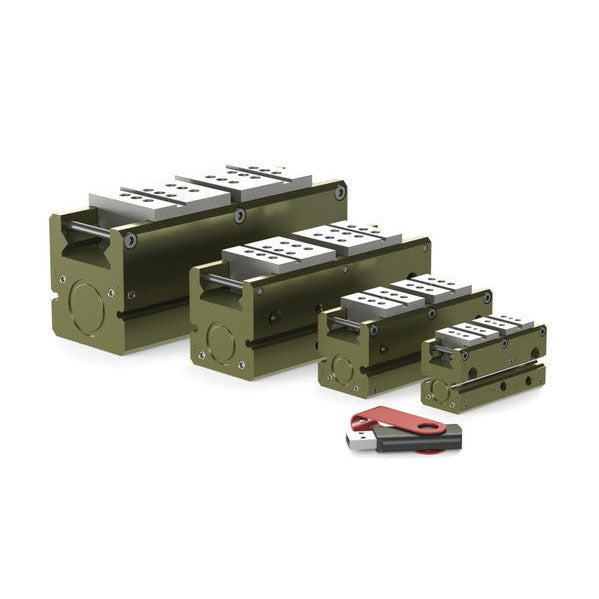

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the unrivaled performance and precision of the DESTACO DPP-10M-12 2 JAW PRECISION PARALLEL GRIPPER DIRECTCONNECT. With patented Dual-V roller bearings for effortless movement and multiple mounting options, this gripper delivers superior accuracy and repeatability. Effortlessly handle up to 111 N (27 lbsf) of grip force and achieve a 12.7 mm (0.500 in) stroke with ease. Trust the proven reliability of the patented Dual "V" Roller Bearing Support and achieve unparalleled precision in your production process. Upgrade to the DESTACO DPP-10M-12 and elevate your manufacturing capabilities today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPP-10M-12 2 JAW PRECISION PARALLEL GRIPPER
DIRECTCONNECT Precision 2 jaw parallel gripper features our patented Dual-V roller bearing design for low friction and excellent part position repeatability with multiple mounting surfaces & air port locations, thru mounting, purge/vacuum port, and spring
- Features DIRECTCONNECT Mounting
- Patented Dual "V"DESTACO DPP-10M-12 2 JAW PRECISION PARALLEL GRIPPER" Roller Bearing Support "
- Excellent accuracy and repeatability
| Product | Metric |
| Grip Force (N) | 111 |
| Grip Force (lbsf) | 27 |
| Stroke (mm) | 12.7 |
| Stroke (in) | 0.500 |
| Cylinder Bore (mm) | 10.3 |
| Cylinder Bore (in) | 0.406 |
| Pressure Range Without Springs | 5-100 psi |
| Pressure Range With Springs | 20-100 psi |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 120°C (-20° to 250°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.030 |
| Repeatability (±mm) | 0.010 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 76 |
| Maximum Finger Length (in) | 3.00 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Jaw Operation | Non-Synchronous Available |
| Spring Assist | Optional |
| Weight (kg) | 0.20 |
| Weight (lb) | 0.45 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
