Brand: DESTACO

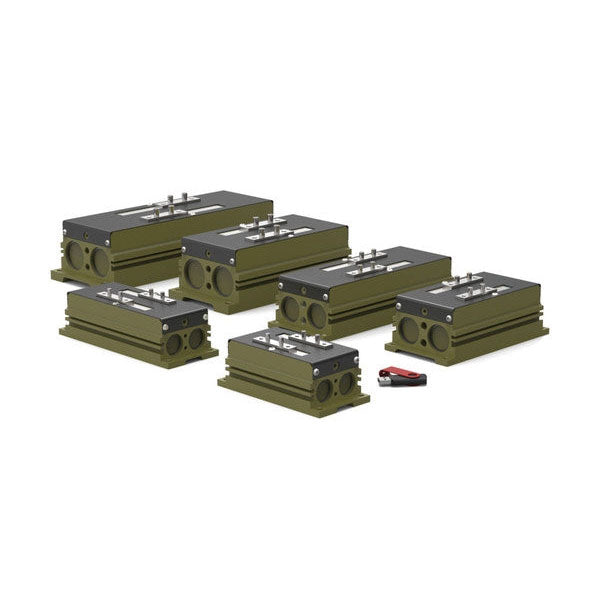

DESTACO DPL-3250 2 JAW PRECISION PARALLEL GRIPPER
SKU: DE-STA-CO-DPL-3250
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DPL Series - the ultimate long-stroke, high grip force, 2-jaw precision parallel gripper. With five models and two strokes per model, this compact, robust, and multi-purpose gripper is perfect for any application. The shielded case protects the mechanism, making it ideal for machining work. Choose from options such as safety spring (R), Magneto-resistive or inductive (SD) sensing to enhance your experience. Experience an impressive grip force of 1,306 N (294 lbsf) and a stroke of 100.0 mm (3.940 in) with a 32 mm (1.26 in) cylinder bore. Don't wait, upgrade to the DESTACO DPL-3250 today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPL-3250 2 JAW PRECISION PARALLEL GRIPPER
The DPL Series are long-stroke, high grip force, 2-jaw precision parallel grippers. Five models with 2 strokes per model available.
- Long stroke, compact, robust and multi-purpose gripper designed for all kind of applications
- Shielded case to protect the mechanism allowing use in machining applications
- Options : safety spring ( R), Magneto-resistive or inductive (SD) sensing
| Product | Imperial |
| Grip Force (N) | 1,306 |
| Grip Force (lbsf) | 294 |
| Stroke (mm) | 100.0 |
| Stroke (in) | 3.940 |
| Cylinder Bore (mm) | 32 |
| Cylinder Bore (in) | 1.26 |
| Pressure Range Without Springs | 30-100 psi |
| Pressure Range With Springs | 60-100 psi |
| Temp Range Standard | -20‚° to 80‚°C (-4‚° to 180‚°F) |
| Actuation (Open/Closed) (Sec) | 1 |
| Accuracy (‚±in) | 0.003 |
| Repeatability (‚±mm) | 0.030 |
| Repeatability (‚±in) | 0.001 |
| Maximum Finger Length (mm) | 350 |
| Maximum Finger Length (in) | 13.78 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Jaw Operation | Non-Synchronous Available |
| Spring Assist | Optional |
| Weight (kg) | 3.02 |
| Weight (lb) | 6.66 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
