Brand: DESTACO

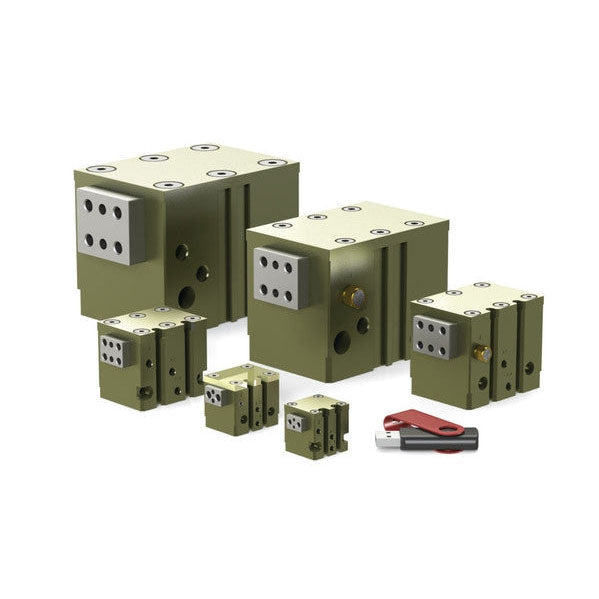

DESTACO ROBOHAND DPDS-250M-038 2 JAW MODULAR PARALLEL GRIPPER
SKU: DE-STA-CO-DPDS-250M-038
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Get ready for the ultimate gripping experience with the versatile and customizable DESTACO DPDS-250M-038 2 JAW MODULAR PARALLEL GRIPPER. Designed with a variety of jaw styles and mounting options, this gripper offers multiple stroke lengths to fit any application. Its corrosion-resistant hardware and clean room options make it a top choice for any industry. Plus, with a high gripping force of 1,779 N (400 lbsf) and a smooth 9.5 mm (0.380 in) stroke, this gripper will exceed all your expectations. Order now and experience the power of the DIRECTCONNECT Mounting system.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPDS-250M-038 2 JAW MODULAR PARALLEL GRIPPER
DIRECTCONNECT short stroke 2-jaw parallel gripper features multiple jaw styles, mounting and air port locations and more. Each gripper is offered in 3 different strokes. Corrosion resistant hardware or clean room options are available.
- Features DIRECTCONNECT Mounting
- Highly configurable gripper
- Multiple Strokes
| Product | Metric |
| Grip Force (N) | 1,779 |
| Grip Force (lbsf) | 400 |
| Stroke (mm) | 9.5 |
| Stroke (in) | 0.380 |
| Cylinder Bore (mm) | 63.5 |
| Cylinder Bore (in) | 2.5 |
| Pressure Range (bar) | 1.5-7 |
| Pressure Range (psi) | 20-100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 1 |
| Accuracy (±mm) | 0.080 |
| Accuracy (±in) | 0.003 |
| Repeatability (±mm) | 0.030 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 203 |
| Maximum Finger Length (in) | 8.00 |
| Protection Class | IP54 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Weight (kg) | 2.76 |
| Weight (lb) | 6.08 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
