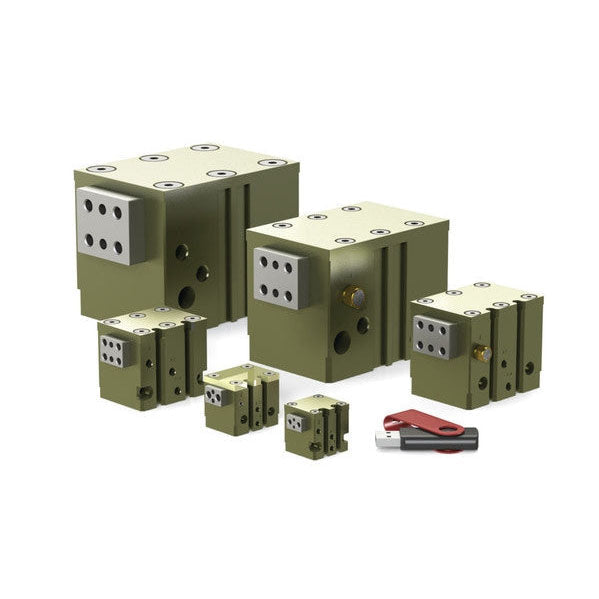

DESTACO ROBOHAND DPDS-175M-050 2 JAW MODULAR PARALLEL GRIPPER
SKU: DE-STA-CO-DPDS-175M-050
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO DPDS-175M-050 2 JAW MODULAR PARALLEL GRIPPER - the perfect solution for your gripping needs! Our innovative gripper features customizable jaw styles and mounting options, as well as a variety of air port locations. With 3 different strokes to choose from and the option of corrosion resistant hardware or a clean room design, this gripper is highly configurable and versatile. Experience the power of DIRECTCONNECT mounting and take your gripping capabilities to the next level. With a metric grip force of 890N (or 200lbsf) and a stroke of 12.7mm (or 0.500 inches), this gripper is designed to meet your specific needs. Don't wait any longer - upgrade to the DESTACO DPDS-175M-050 2 JAW MODULAR PARALLEL GRIPPER today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPDS-175M-050 2 JAW MODULAR PARALLEL GRIPPER
DIRECTCONNECT short stroke 2-jaw parallel gripper features multiple jaw styles, mounting and air port locations and more. Each gripper is offered in 3 different strokes. Corrosion resistant hardware or clean room options are available.
- Features DIRECTCONNECT Mounting
- Highly configurable gripper
- Multiple Strokes
| Product | Metric |
| Grip Force (N) | 890 |
| Grip Force (lbsf) | 200 |
| Stroke (mm) | 12.7 |
| Stroke (in) | 0.500 |
| Cylinder Bore (mm) | 44.5 |
| Cylinder Bore (in) | 1.75 |
| Pressure Range (bar) | 1.5-7 |
| Pressure Range (psi) | 20-100 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.080 |
| Accuracy (±in) | 0.003 |
| Repeatability (±mm) | 0.030 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 127 |
| Maximum Finger Length (in) | 5.00 |
| Protection Class | IP54 |
| Product Type | 2 Jaw Parallel |
| Direct Connect | Yes |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Weight (kg) | 1.68 |
| Weight (lb) | 3.70 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
